首頁歐美晶振Abracon晶振ABLS-3.6864MHZ-L4Q-T 3.6864 MHz 100PPM 18PF -55~125℃

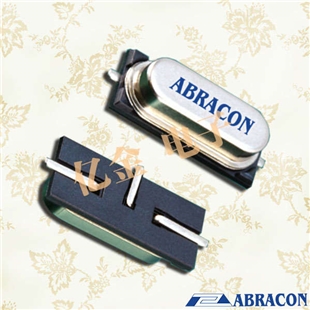

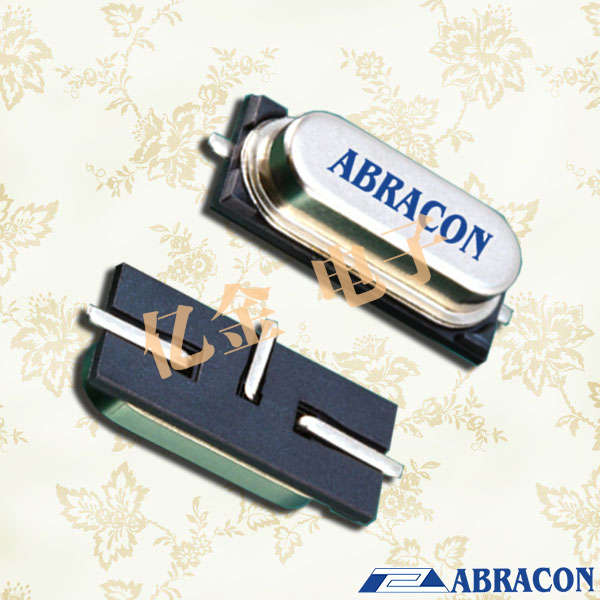

ABLS-3.6864MHZ-L4Q-T 3.6864 MHz 100PPM 18PF -55~125℃

  • 頻率：3.6864
  • 尺寸：
  • 應　用： ABLS-3.6864MHZ-L4Q-T3.6864MHz100PPM18PF-55~125℃，歐美艾伯康晶振公司,適用于RoHS回流，提供緊密的穩定性和擴展的溫度范圍,計算機，調制解調器，微處理器，無線應用程序ABLS-3.6864MHZ-L4Q-T3.6864MHz100PPM18PF-5...
  • RoHS RoHS2


ABLS-3.6864MHZ-L4Q-T 3.6864 MHz 100PPM 18PF -55~125℃，歐美艾伯康晶振公司,適用于RoHS回流，提供緊密的穩定性和擴展的溫度范圍,計算機，調制解調器，微處理器，無線應用程序

ABLS-3.6864MHZ-L4Q-T 3.6864 MHz 100PPM 18PF -55~125℃

                        參數                      最小值      典型的   最大值 單位 備注
頻率
3.579545
 ----- 75* MHz Contact Abracon for
available F< 11MHz
工作模式 Fundamental ----- 10MHz - 54MHz
AT cut (Fundamental or 3rd OT) or BT cut (See options)
3.579545MHz - 24.0MHz (Fundamental: Standard)
24.01MHz - 75.00MHz (3rd- Overtone: Standard)
24.01MHz - 50.00MHz (Fund. AT or BT: See options)
 ----- 64.000 MHz - 125.000 MHz
Please contact Abracon for
available frequencies
工作溫度 0 ----- +70 ºC See options
 儲存溫度 --55 ----- + 125 ºC
頻率公差@+25°C --50 ----- +50 ppm See options
頻率在工作溫度下的穩定性(參考+25°C) --50 ----- +50 ppm See options
等效串聯電阻（R1） See table 1 below ?
  分流電容（C0） ----- ----- 7.0 pF
負載電容（CL） ----- 18.0 ----- pF Standard (See options if
other than STD)
驅動電平 1.0 ----- 100 µW
老化 --3 ----- +3 ppm @25°C±3°C
First year
絕緣電阻 500 ----- ----- M? @ 100Vdc ± 15V

ABLS-3.6864MHZ-L4Q-T 3.6864 MHz 100PPM 18PF -55~125℃
abls 11.5-4.7
ABLS

ABRACON編號 制造商 型號 頻率 頻率穩定性 負載電容
ABLS-12.000MHZ-20-B-3-H-T Abracon晶振 ABLS 12 MHz ±35ppm 20pF
ABLS-20.000MHZ-B-4-Y-T Abracon晶振 ABLS 20 MHz ±30ppm 18pF
ABLS-20.000MHZ-20-B-3-H-T Abracon晶振 ABLS 20 MHz ±35ppm 20pF
ABLS-3.579545MHZ-D-3-Y-T Abracon晶振 ABLS 3.579545 MHz ±30ppm 18pF
ABLS-3.6864MHZ-20-B-3-H-T Abracon晶振 ABLS 3.6864 MHz ±35ppm 20pF
ABLS-14.7456MHZ-20-B-4-Y-T Abracon晶振 ABLS 14.7456 MHz ±30ppm 20pF
ABLS-25.000MHZ-B4-F-T Abracon晶振 ABLS 25 MHz ±50ppm 18pF
ABLS-8.000MHZ-B4-T Abracon晶振 ABLS 8 MHz ±50ppm 18pF
ABLS-4.000MHZ-B4-T Abracon晶振 ABLS 4 MHz ±50ppm 18pF
ABLS-16.000MHZ-B4-T Abracon晶振 ABLS 16 MHz ±50ppm 18pF
ABLS-12.000MHZ-B4-T Abracon晶振 ABLS 12 MHz ±50ppm 18pF
ABLS-3.6864MHZ-B4-T Abracon晶振 ABLS 3.6864 MHz ±50ppm 18pF
ABLS-10.000MHZ-B4-T Abracon晶振 ABLS 10 MHz ±50ppm 18pF
ABLS-3.579545MHZ-B4-T Abracon晶振 ABLS 3.579545 MHz ±50ppm 18pF
ABLS-4.9152MHZ-B4-T Abracon晶振 ABLS 4.9152 MHz ±50ppm 18pF
ABLS-6.000MHZ-B4-T Abracon晶振 ABLS 6 MHz ±50ppm 18pF
ABLS-24.000MHZ-B4-T Abracon晶振 ABLS 24 MHz ±50ppm 18pF
ABLS-7.3728MHZ-B4-T Abracon晶振 ABLS 7.3728 MHz ±50ppm 18pF
ABLS-16.384MHZ-B4-T Abracon晶振 ABLS 16.384 MHz ±50ppm 18pF
ABLS-14.7456MHZ-B4-T Abracon晶振 ABLS 14.7456 MHz ±50ppm 18pF
ABLS-5.000MHZ-B4-T Abracon晶振 ABLS 5 MHz ±50ppm 18pF
ABLS-11.0592MHZ-B4-T Abracon晶振 ABLS 11.0592 MHz ±50ppm 18pF
ABLS-28.63636MHZ-B4-F-T Abracon晶振 ABLS 28.63636 MHz ±50ppm 18pF
ABLS-20.000MHZ-B4-T Abracon晶振 ABLS 20 MHz ±50ppm 18pF
ABLS-4.194304MHZ-B4-T Abracon晶振 ABLS 4.194304 MHz ±50ppm 18pF
ABLS-18.432MHZ-B-4-Y-T Abracon晶振 ABLS 18.432 MHz ±30ppm 18pF
ABLS-11.0592MHZ-20-B-4-H-T Abracon晶振 ABLS 11.0592 MHz ±35ppm 20pF
ABLS-8.000MHZ-20-B-3-H-T Abracon晶振 ABLS 8 MHz ±35ppm 20pF
ABLS-18.432MHZ-20-B-3-H-T Abracon晶振 ABLS 18.432 MHz ±35ppm 20pF
ABLS-7.3728MHZ-20-B-3-H-T Abracon晶振 ABLS 7.3728 MHz ±35ppm 20pF
ABLS-7.3728MHZ-B2-T Abracon晶振 ABLS 7.3728 MHz ±50ppm 18pF
ABLS-20.000MHZ-B2-T Abracon晶振 ABLS 20 MHz ±50ppm 18pF
ABLS-4.000MHZ-B2-T Abracon晶振 ABLS 4 MHz ±50ppm 18pF
ABLS-10.000MHZ-B2-T Abracon晶振 ABLS 10 MHz ±50ppm 18pF
ABLS-4.9152MHZ-B2-T Abracon晶振 ABLS 4.9152 MHz ±50ppm 18pF
ABLS-12.000MHZ-B2-T Abracon晶振 ABLS 12 MHz ±50ppm 18pF
ABLS-8.000MHZ-B2-T Abracon晶振 ABLS 8 MHz ±50ppm 18pF
ABLS-8.192MHZ-B2-T Abracon晶振 ABLS 8.192 MHz ±50ppm 18pF
ABLS-18.432MHZ-B2-T Abracon晶振 ABLS 18.432 MHz ±50ppm 18pF
ABLS-16.000MHZ-B2-T Abracon晶振 ABLS 16 MHz ±50ppm 18pF
ABLS-25.000MHZ-B2F-T Abracon晶振 ABLS 25 MHz ±50ppm 18pF
ABLS-3.6864MHZ-B2-T Abracon晶振 ABLS 3.6864 MHz ±50ppm 18pF
ABLS-14.7456MHZ-B2-T Abracon晶振 ABLS 14.7456 MHz ±50ppm 18pF
ABLS-12.288MHZ-B2-T Abracon晶振 ABLS 12.288 MHz ±50ppm 18pF
ABLS-11.0592MHZ-B2-T Abracon晶振 ABLS 11.0592 MHz ±50ppm 18pF
ABLS-5.000MHZ-B2-T Abracon晶振 ABLS 5 MHz ±50ppm 18pF
ABLS-27.000MHZ-B2F-T Abracon晶振 ABLS 27 MHz ±50ppm 18pF
ABLS-19.6608MHZ-B2-T Abracon晶振 ABLS 19.6608 MHz ±50ppm 18pF
ABLS-22.1184MHZ-B2-T Abracon晶振 ABLS 22.1184 MHz ±50ppm 18pF
ABLS-18.432MHZ-B4-T Abracon晶振 ABLS 18.432 MHz ±50ppm 18pF
ABLS-6.144MHZ-B4-T Abracon晶振 ABLS 6.144 MHz ±50ppm 18pF
ABLS-24.576MHZ-B4-F-T Abracon晶振 ABLS 24.576 MHz ±50ppm 18pF
ABLS-13.000MHZ-B4-T Abracon晶振 ABLS 13 MHz ±50ppm 18pF
ABLS-12.288MHZ-B4-T Abracon晶振 ABLS 12.288 MHz ±50ppm 18pF
ABLS-24.000MHZ-D-R60-1-W-T Abracon晶振 ABLS 24 MHz ±25ppm 18pF
ABLS-8.000MHZ-K4T Abracon晶振 ABLS 8 MHz ±50ppm 18pF
ABLS-10.000MHZ-K4T Abracon晶振 ABLS 10 MHz ±50ppm 18pF
ABLS-13.52127MHZ-10-J-4Q-T Abracon晶振 ABLS 13.52127 MHz ±100ppm 10pF
ABLS-16.000MHZ-K4T Abracon晶振 ABLS 16 MHz ±50ppm 18pF
