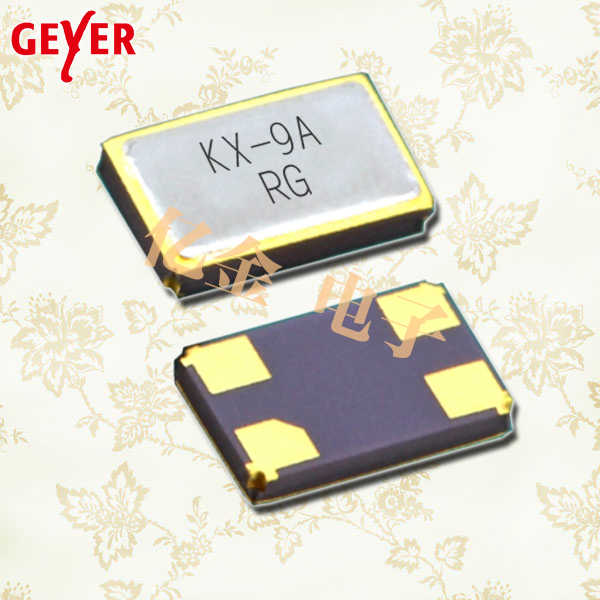

格耶晶振,KX-9A手機晶振,5032mm貼片晶振，智能手機晶振,產品具有高精度超小型的表面貼片型石英晶體振蕩器,最適用于移動通信終端的基準時鐘等移動通信領域.比如智能手機,無線通信,衛星導航,平臺基站等較高端的數碼產品,晶振本身小型,薄型具備各類移動通信的基準時鐘源用頻率,貼片晶振具有優良的電氣特性,耐環境性能適用于移動通信領域,滿足無鉛焊接的高溫回流溫度曲線要求
    GEYER晶振作為一個可靠的，成功的合作伙伴，我們非常重視在開發階段與客戶的密切合作。這使我們能夠確保我們能夠?yàn)槟峁┠胍暮托枰摹?

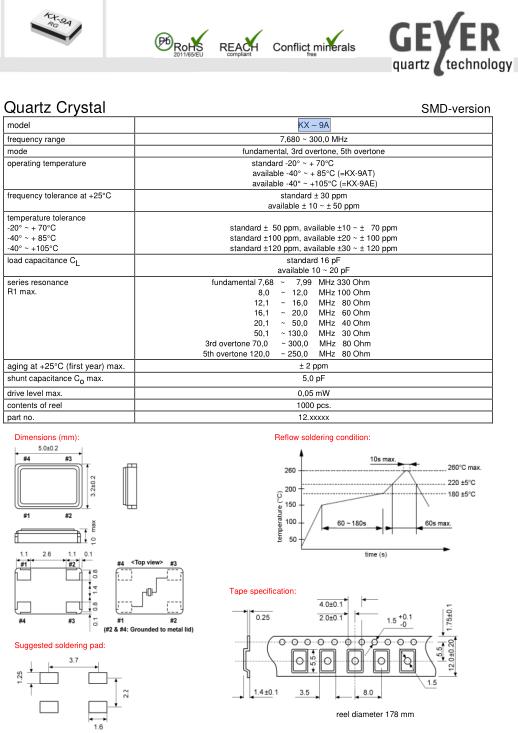

model	KX – 9A
frequency range	7,680 ~ 300,0 MHz
mode	fundamental, 3rd overtone, 5th overtone
operating temperature	standard -20° ~ + 70°C available -40° ~ + 85°C (=KX-9AT)  available -40° ~ +105°C (=KX-9AE)
frequency tolerance at +25°C	standard ± 30 ppm available ± 10 ~ ± 50 ppm
temperature tolerance -20° ~ + 70°C -40° ~ + 85°C -40° ~ +105°C	standard ± 50 ppm, available ±10 ~ ± 70 ppm standard ±100 ppm, available ±20 ~ ± 100 ppm standard ±120 ppm, available ±30 ~ ± 120 ppm
load capacitance CL	standard 16 pF available 10 ~ 20 pF
series resonance R1 max.	fundamental 7,68 ~ 7,99 MHz 330 Ohm  8,0 ~ 12,0 MHz 100 Ohm  12,1 ~ 16,0 MHz 80 Ohm  16,1 ~ 20,0 MHz 60 Ohm  20,1 ~ 50,0 MHz 40 Ohm  50,1 ~ 130,0 MHz 30 Ohm  3rd overtone 70,0 ~ 300,0 MHz 80 Ohm  5th overtone 120,0 ~ 250,0 MHz 80 Ohm
aging at +25°C (first year) max.	±2 ppm
shunt capacitance Co max.	5,0 pF
drive level max.	0,05 mW
contents of reel	1000 pcs.
part no.	12.xxxxx
