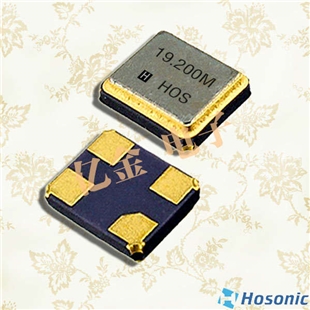

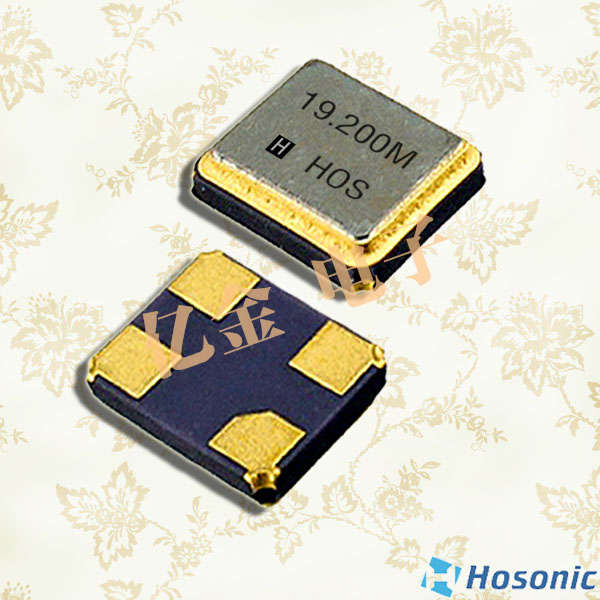

更多>>鴻星石英晶振,E3FB18.0000F18E33,6G無線模塊晶振
- 頻率：18MHz
- 尺寸：3.2×2.5mm
- 應 用： 臺灣進口晶振,鴻星石英晶振,E3FB貼片石英晶振,3225mm晶振,E3FB18.0000F18E33晶振,頻率18MHz,負載18pF,頻率穩定性30ppm,工作溫度-20~70°C,高品質晶振,耐高溫晶振,6G無線模塊晶振,非射頻應用晶振,無線控制器設備晶振,便...
-
-
鴻星石英晶振,E3FB18.0000F18E33,6G無線模塊晶振,臺灣進口晶振,鴻星石英晶振,E3FB貼片石英晶振,3225mm晶振,E3FB18.0000F18E33晶振,頻率18MHz,負載18pF,頻率穩定性30ppm,工作溫度-20~70°C,高品質晶振,耐高溫晶振,6G無線模塊晶振,非射頻應用晶振,無線控制器設備晶振,便攜式設備晶振.
鴻星石英晶振,E3FB18.0000F18E33,6G無線模塊晶振特點：
-非常緊湊和薄(3.2*2.5*0.90mm Max)
-用于設計空間有限的非射頻應用的通用解決方案，如無線控制器設備和其他便攜式消費產品
-無鉛。滿足使用鉛的再流動剖面的要求無焊
-非常緊湊和薄(3.2*2.5*0.90mm Max)
-用于設計空間有限的非射頻應用的通用解決方案，如無線控制器設備和其他便攜式消費產品
-無鉛。滿足使用鉛的再流動剖面的要求無焊

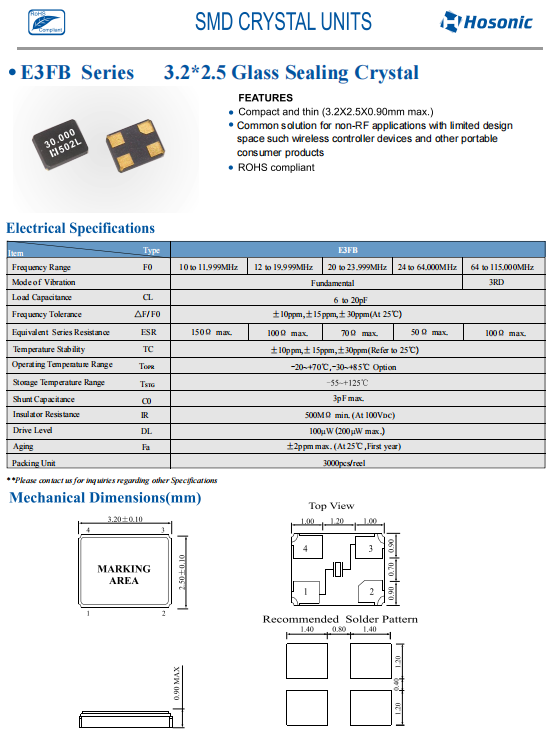

鴻星石英晶振,E3FB18.0000F18E33,6G無線模塊晶振規格表
| 項目 | 符號 | E3FB |
| 頻率 | f0 | 18MHz |
| 振動模式 | Fundamental | |
| 頻率公差 | △ f/f0 | ±30ppm |
| 溫度穩定性 | TC | ±30ppm |
| 負載電容 | CL | 18pf |
| 工作溫度 | TOPR | －20℃～＋70℃ |
| 保存溫度 | TSTR | －55℃～＋125℃ |
| 串聯阻力 | R1 | 100Ω Max. |
| 驅動級別 | DL | 200μW Max |
| 老化（第一年） | △ f/f0 | ±2ppm Max. |
.jpg)

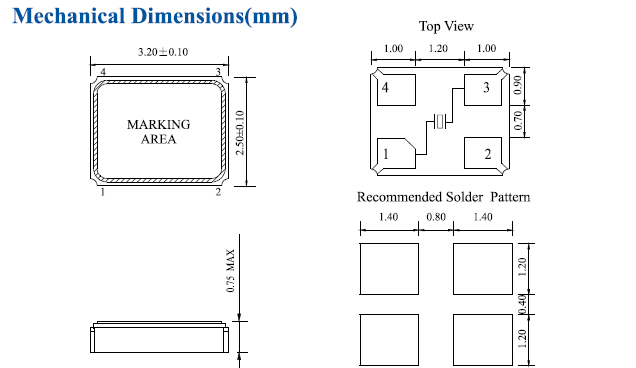

鴻星石英晶振,E3FB18.0000F18E33,6G無線模塊晶振尺寸圖
 3225(3).png)
| 原廠編碼 | 制造廠家 | 型號 | 頻率 | 負載電容 | 頻率容差 | 頻率穩定度 | 尺寸 |
| E3FB16.0000F18E33 | Hosonic晶振 | E3FB | 16MHz | 18pF | ±30ppm | ±30ppm | 3.2 x 2.5 x 0.8 mm |
| E3FB17.0000F18E33 | Hosonic晶振 | E3FB | 17MHz | 18pF | ±30ppm | ±30ppm | 3.2 x 2.5 x 0.8 mm |
| E3FB18.0000F18E33 | Hosonic晶振 | E3FB | 18MHz | 18pF | ±30ppm | ±30ppm | 3.2 x 2.5 x 0.8 mm |
| E3FB19.0000F18E33 | Hosonic晶振 | E3FB | 19MHz | 18pF | ±30ppm | ±30ppm | 3.2 x 2.5 x 0.8 mm |
| E3FB20.0000F18E33 | Hosonic晶振 | E3FB | 20MHz | 18pF | ±30ppm | ±30ppm | 3.2 x 2.5 x 0.8 mm |
| E3FB21.0000F18E33 | Hosonic晶振 | E3FB | 21MHz | 18pF | ±30ppm | ±30ppm | 3.2 x 2.5 x 0.8 mm |
| E3FB22.0000F18E33 | Hosonic晶振 | E3FB | 22MHz | 18pF | ±30ppm | ±30ppm | 3.2 x 2.5 x 0.8 mm |
| E3FB23.0000F18E33 | Hosonic晶振 | E3FB | 23MHz | 18pF | ±30ppm | ±30ppm | 3.2 x 2.5 x 0.8 mm |
| E3FB24.0000F18E33 | Hosonic晶振 | E3FB | 24MHz | 18pF | ±30ppm | ±30ppm | 3.2 x 2.5 x 0.8 mm |
| E3FB25.0000F18E33 | Hosonic晶振 | E3FB | 25MHz | 18pF | ±30ppm | ±30ppm | 3.2 x 2.5 x 0.8 mm |
| E3FB26.0000F18E33 | Hosonic晶振 | E3FB | 26MHz | 18pF | ±30ppm | ±30ppm | 3.2 x 2.5 x 0.8 mm |
| E3FB27.0000F18E33 | Hosonic晶振 | E3FB | 27MHz | 18pF | ±30ppm | ±30ppm | 3.2 x 2.5 x 0.8 mm |
| E3FB28.0000F18E33 | Hosonic晶振 | E3FB | 28MHz | 18pF | ±30ppm | ±30ppm | 3.2 x 2.5 x 0.8 mm |
| E3FB29.0000F18E33 | Hosonic晶振 | E3FB | 29MHz | 18pF | ±30ppm | ±30ppm | 3.2 x 2.5 x 0.8 mm |
| E3FB30.0000F18E33 | Hosonic晶振 | E3FB | 30MHz | 18pF | ±30ppm | ±30ppm | 3.2 x 2.5 x 0.8 mm |
| E3FB31.0000F18E33 | Hosonic晶振 | E3FB | 31MHz | 18pF | ±30ppm | ±30ppm | 3.2 x 2.5 x 0.8 mm |
| E3FB32.0000F18E33 | Hosonic晶振 | E3FB | 32MHz | 18pF | ±30ppm | ±30ppm | 3.2 x 2.5 x 0.8 mm |
| E3FB33.0000F18E33 | Hosonic晶振 | E3FB | 33MHz | 18pF | ±30ppm | ±30ppm | 3.2 x 2.5 x 0.8 mm |
| E3FB34.0000F18E33 | Hosonic晶振 | E3FB | 34MHz | 18pF | ±30ppm | ±30ppm | 3.2 x 2.5 x 0.8 mm |
| E3FB35.0000F18E33 | Hosonic晶振 | E3FB | 35MHz | 18pF | ±30ppm | ±30ppm | 3.2 x 2.5 x 0.8 mm |
| E3FB36.0000F18E33 | Hosonic晶振 | E3FB | 36MHz | 18pF | ±30ppm | ±30ppm | 3.2 x 2.5 x 0.8 mm |
| E3FB37.0000F18E33 | Hosonic晶振 | E3FB | 37MHz | 18pF | ±30ppm | ±30ppm | 3.2 x 2.5 x 0.8 mm |
| E3FB38.0000F18E33 | Hosonic晶振 | E3FB | 38MHz | 18pF | ±30ppm | ±30ppm | 3.2 x 2.5 x 0.8 mm |
| E3FB39.0000F18E33 | Hosonic晶振 | E3FB | 39MHz | 18pF | ±30ppm | ±30ppm | 3.2 x 2.5 x 0.8 mm |
| E3FB40.0000F18E33 | Hosonic晶振 | E3FB | 40MHz | 18pF | ±30ppm | ±30ppm | 3.2 x 2.5 x 0.8 mm |
| E3FB41.0000F18E33 | Hosonic晶振 | E3FB | 41MHz | 18pF | ±30ppm | ±30ppm | 3.2 x 2.5 x 0.8 mm |
| E3FB42.0000F18E33 | Hosonic晶振 | E3FB | 42MHz | 18pF | ±30ppm | ±30ppm | 3.2 x 2.5 x 0.8 mm |
| E3FB43.0000F18E33 | Hosonic晶振 | E3FB | 43MHz | 18pF | ±30ppm | ±30ppm | 3.2 x 2.5 x 0.8 mm |
| E3FB44.0000F18E33 | Hosonic晶振 | E3FB | 44MHz | 18pF | ±30ppm | ±30ppm | 3.2 x 2.5 x 0.8 mm |
| E3FB45.0000F18E33 | Hosonic晶振 | E3FB | 45MHz | 18pF | ±30ppm | ±30ppm | 3.2 x 2.5 x 0.8 mm |
| E3FB46.0000F18E33 | Hosonic晶振 | E3FB | 46MHz | 18pF | ±30ppm | ±30ppm | 3.2 x 2.5 x 0.8 mm |
| E3FB47.0000F18E33 | Hosonic晶振 | E3FB | 47MHz | 18pF | ±30ppm | ±30ppm | 3.2 x 2.5 x 0.8 mm |
| E3FB48.0000F18E33 | Hosonic晶振 | E3FB | 48MHz | 18pF | ±30ppm | ±30ppm | 3.2 x 2.5 x 0.8 mm |
| E3FB49.0000F18E33 | Hosonic晶振 | E3FB | 49MHz | 18pF | ±30ppm | ±30ppm | 3.2 x 2.5 x 0.8 mm |
| E3FB50.0000F18E33 | Hosonic晶振 | E3FB | 50MHz | 18pF | ±30ppm | ±30ppm | 3.2 x 2.5 x 0.8 mm |
| E3FB51.0000F18E33 | Hosonic晶振 | E3FB | 51MHz | 18pF | ±30ppm | ±30ppm | 3.2 x 2.5 x 0.8 mm |
| E3FB52.0000F18E33 | Hosonic晶振 | E3FB | 52MHz | 18pF | ±30ppm | ±30ppm | 3.2 x 2.5 x 0.8 mm |
| E3FB53.0000F18E33 | Hosonic晶振 | E3FB | 53MHz | 18pF | ±30ppm | ±30ppm | 3.2 x 2.5 x 0.8 mm |
| E3FB54.0000F18E33 | Hosonic晶振 | E3FB | 54MHz | 18pF | ±30ppm | ±30ppm | 3.2 x 2.5 x 0.8 mm |
| E3FB55.0000F18E33 | Hosonic晶振 | E3FB | 55MHz | 18pF | ±30ppm | ±30ppm | 3.2 x 2.5 x 0.8 mm |
| E3FB56.0000F18E33 | Hosonic晶振 | E3FB | 56MHz | 18pF | ±30ppm | ±30ppm | 3.2 x 2.5 x 0.8 mm |
| E3FB57.0000F18E33 | Hosonic晶振 | E3FB | 57MHz | 18pF | ±30ppm | ±30ppm | 3.2 x 2.5 x 0.8 mm |
| E3FB58.0000F18E33 | Hosonic晶振 | E3FB | 58MHz | 18pF | ±30ppm | ±30ppm | 3.2 x 2.5 x 0.8 mm |
| E3FB59.0000F18E33 | Hosonic晶振 | E3FB | 59MHz | 18pF | ±30ppm | ±30ppm | 3.2 x 2.5 x 0.8 mm |
| E3FB60.0000F18E33 | Hosonic晶振 | E3FB | 60MHz | 18pF | ±30ppm | ±30ppm | 3.2 x 2.5 x 0.8 mm |
| E3FB61.0000F18E33 | Hosonic晶振 | E3FB | 61MHz | 18pF | ±30ppm | ±30ppm | 3.2 x 2.5 x 0.8 mm |
| E3FB62.0000F18E33 | Hosonic晶振 | E3FB | 62MHz | 18pF | ±30ppm | ±30ppm | 3.2 x 2.5 x 0.8 mm |
| E3FB63.0000F18E33 | Hosonic晶振 | E3FB | 63MHz | 18pF | ±30ppm | ±30ppm | 3.2 x 2.5 x 0.8 mm |
| E3FB64.0000F18E33 | Hosonic晶振 | E3FB | 64MHz | 18pF | ±30ppm | ±30ppm | 3.2 x 2.5 x 0.8 mm |
| E3FB65.0000F18E33 | Hosonic晶振 | E3FB | 65MHz | 18pF | ±30ppm | ±30ppm | 3.2 x 2.5 x 0.8 mm |
| E3FB66.0000F18E33 | Hosonic晶振 | E3FB | 66MHz | 18pF | ±30ppm | ±30ppm | 3.2 x 2.5 x 0.8 mm |
