DSA6003CL2B-016.0000B-Microchip品牌-車規級晶振
- 頻率：16MHz
- 尺寸：3.2×2.5mm
- 應 用： Microchip晶振,DSA60XX貼片石英晶振,DSA6003CL2B-016.0000B晶振,3225mm晶振,有源晶振,四腳貼片晶振,晶體振蕩器,汽車級AEC-Q100合格,頻率16MHz,電壓3.3V,工作溫度-40~105°C,頻率穩定性25ppm,低抖動晶振,高穩定性晶振,...
-
-
DSA6003CL2B-016.0000B-Microchip品牌-車規級晶振,Microchip晶振,DSA60XX貼片石英晶振,DSA6003CL2B-016.0000B晶振,3225mm晶振,有源晶振,四腳貼片晶振,晶體振蕩器,汽車級AEC-Q100合格,頻率16MHz,電壓3.3V,工作溫度-40~105°C,頻率穩定性25ppm,低抖動晶振,高穩定性晶振,耐高溫晶振,CAN總線晶振,汽車動力系統晶振,遠程信息處理晶振,車身控制單元晶振.
DSA6003CL2B-016.0000B-Microchip品牌-車規級晶振特點：
•汽車AEC-Q100合格
•寬頻率范圍:2 kHz至80 MHz
•超低功耗: 1.3mA/1µA(活動/備用)
•超小足跡
-1.6 mm x 1.2 mm VFLGA
- 2.0 mm x 1.6 mm VFLGA
- 2.5 mm × 2.0 mm VLGA
- 3.2 mm x 2.5 mm VDFN
- 5.0 mm x 3.2 mm VDFN
- 7.0 mm x 5.0 mm VDFN
•頻率選擇輸入支持兩個預定義的頻率
•高穩定性：±20 ppm，±25 ppm，±50 ppm
•寬溫度范圍
-汽車等級1：-40°C~+125°C
-汽車等級2：-40°C~105°C
-汽車等級3:- 40℃~ +85℃
•卓越的抗沖擊和抗振動能力
-符合MIL-STD-883標準
•高可靠性
- MTF比石英振蕩器好20倍
•電源范圍1.71V至3.63V
•樣品交貨時間短:<1周
•無鉛和符合RoHS標準
DSA6003CL2B-016.0000B-Microchip品牌-車規級晶振規格表
| 項目 | 規格說明 | 條件 |
| 額定頻率 | 16MHz | 請聯系我們以便獲取其它可用頻率的相關信息 |
| 電源電壓 | 3.3V | |
| 儲存溫度 | -55℃~+150℃ | 裸存 |
| 工作溫度 | -40℃~ +105℃ | |
| 頻率穩定度 | ±25ppm | 包括由初始公差、溫度和電源電壓引起的頻率變化 |
| 老化 | ±5ppm | 1st year @ +25°C |
| 電流 | 1.5µA |
VDD = 3.3V
|
| 輸出邏輯電平高（VOH） |
0.8 x VDD Min
|
Output logic high, I = 1 mA,
|
| 輸出邏輯電平低（VOL） | 0.2 x VDD Max |
Output Logic Low, I = –1 mA,
|
| 輸出上升下降時間 | 2.2ns Max |
DSA60x3B ，Low Drive,
20% to 80%，CL = 5 pF
|
| 占空比 | 45%~55% | |
| 輸入邏輯電平高（VIH） | 0.7×VDD Min |
Input logic high
|
| 輸入邏輯電平低（VIL） | 0.3x VDD Max |
Input logic low
|
| 起始時間 | 1.5ms Max |
From 90% VDD to valid clock
output, T = 25°C
|
| 周期抖動 | 23psRMS |
DSA60x3B，Low Drive,
FOUT =27 MHz，VDD =2.5V/3.3V |
| 周期對周期抖動 |
90psRMS
|
DSA60x3B，Low Drive,
FOUT =27 MHz ，VDD =2.5V/3.3V |
.jpg)

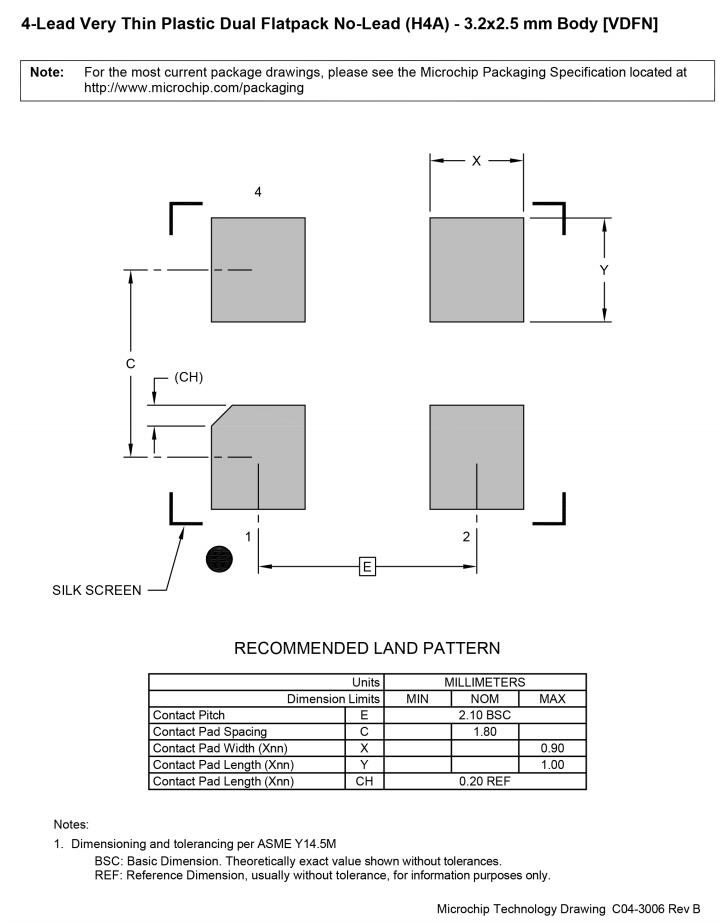

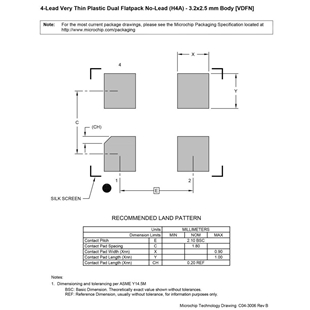

DSA6003CL2B-016.0000B-Microchip品牌-車規級晶振尺寸圖
