首頁歐美晶振Microchip晶振DSC1123AE2-100.0000-Microchip品牌-6G差分振蕩器

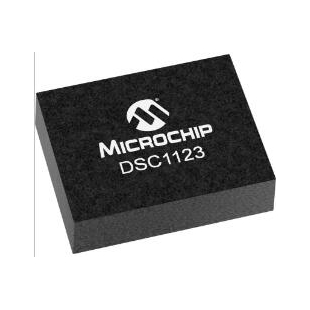

DSC1123AE2-100.0000-Microchip品牌-6G差分振蕩器

  • 頻率：100MHz
  • 尺寸：7.0×5.0mm
  • 應　用： Microchip晶振,DSC1123進口晶振,LVDS差分振蕩器,DSC1123AE2-100.0000晶振,有源晶振,7050mm晶振,貼片石英晶振,SMD晶振,頻率100MHz,電壓3.3V,工作溫度-20~70°C,頻率穩定性25ppm,抗振動晶振,低功耗晶振,低相噪晶振,數字...
  • RoHS RoHS2

DSC1123AE2-100.0000-Microchip品牌-6G差分振蕩器,Microchip晶振,DSC1123進口晶振,LVDS差分振蕩器,DSC1123AE2-100.0000晶振,有源晶振,7050mm晶振,貼片石英晶振,SMD晶振,頻率100MHz,電壓3.3V,工作溫度-20~70°C,頻率穩定性25ppm,抗振動晶振,低功耗晶振,低相噪晶振,數字式攝像機存儲晶振,移動通信晶振,網絡設備晶振,光收發器晶振.
DSC1123AE2-100.0000-Microchip品牌-6G差分振蕩器特點：
•低RMS相位抖動:<1 ps(類型)
•高穩定性:±10 ppm，±20 ppm，±25 ppm，±50 ppm
•寬溫度范圍:
-Ext.工業:- 40°C至+105°C
-工業:- 40℃~ +85℃
-商用:- 20℃~ +70℃
•高電源噪聲抑制:-50 dBc
•寬頻率范圍:2.3 MHz至460 MHz
•小的行業標準足跡
- 2.5 mm × 2.0 mm, 3.2 mm × 2.5 mm, 5.0 mmX 3.2 mm和7.0 mm X 5.0 mm
•卓越的抗沖擊和抗振動能力
-符合MIL-STD-883標準
•高可靠性
- MTF比石英振蕩器好20倍
•低電流消耗
•電源范圍2.25至3.63V
•待機和輸出使能功能
•無鉛，符合RoHS標準

DSC1123AE2-100.0000-Microchip品牌-6G差分振蕩器規格表
項目 規格說明 條件
額定頻率 100MHz 請聯系我們以便獲取其它可用頻率的相關信息
電源電壓 3.3V
儲存溫度 -55℃~+150℃ 裸存
工作溫度 -20℃~ +70℃
頻率穩定度 ±25ppm 包括由初始公差、溫度和電源電壓引起的頻率變化
老化 ±5ppm 1 year @ +25°C
電流 32mA  Max
Output Enabled, RL = 100Ω
負載 15pf
輸出偏移電壓（Vos） 1.4V  Max
R = 100Ω Differential
增量失調電壓（ΔVOS） 50mV Max
-
輸出上升下降時間 200ps Max  20%/80%
RL = 50Ω,CL=15pF
占空比 48%~52%
輸入邏輯電平高（VIH） 0.75×VDD Min
Input  logic  high
輸入邏輯電平低（VIL） 0.25x VDD  Max
Input  logic  low
起始時間 5 ms Max T = +25°C
周期抖動  2.5psRMS
-
集成相位噪聲
2psRMS
12 kHz to 20 MHz @ 156.25 MHz

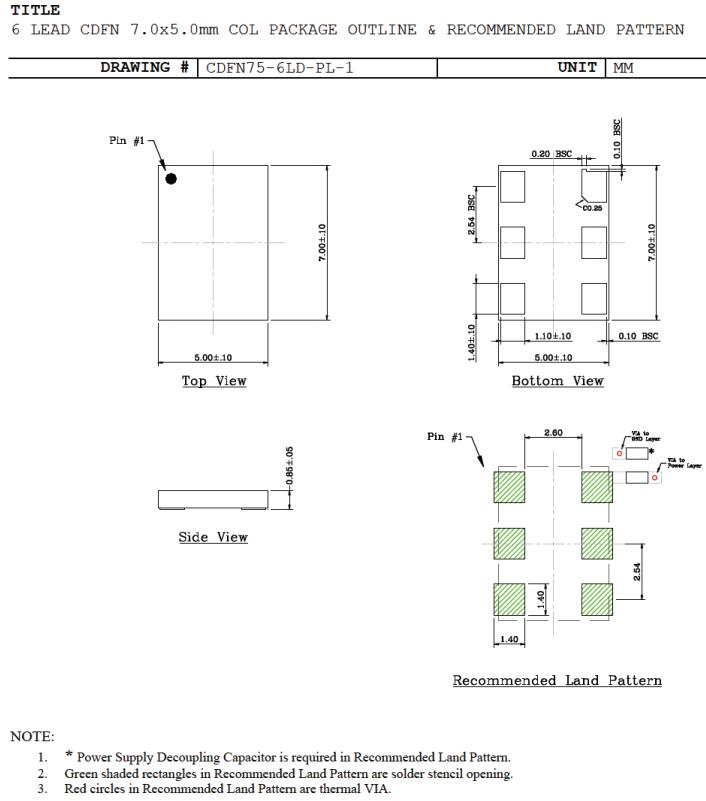

DSC1123AE2-100.0000-Microchip品牌-6G差分振蕩器尺寸圖



原廠代碼 晶振品牌 型號 頻率 電壓 尺寸
DSC1103DI2-312.5000 Microchip Technology DSC1103 312.5MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1103CI5-300.0000 Microchip Technology DSC1103 300MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI1-075.0000 Microchip Technology DSC1103 75MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CE1-125.0000 Microchip Technology DSC1103 125MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103BI2-148.5000 Microchip Technology DSC1103 148.5MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1103BI2-135.0000 Microchip Technology DSC1103 135MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1103BI2-100.0000T Microchip Technology DSC1103 100MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1103BI2-100.0000T Microchip Technology DSC1103 100MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1103BI2-100.0000T Microchip Technology DSC1103 100MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1103CE1-200.0000T Microchip Technology DSC1103 200MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CE1-200.0000T Microchip Technology DSC1103 200MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CE1-200.0000T Microchip Technology DSC1103 200MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CE1-156.2500T Microchip Technology DSC1103 156.25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CE1-156.2500T Microchip Technology DSC1103 156.25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CE1-156.2500T Microchip Technology DSC1103 156.25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103DI5-171.8181T Microchip Technology DSC1103 171.8181MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1103DI5-171.8181T Microchip Technology DSC1103 171.8181MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1103DI5-171.8181T Microchip Technology DSC1103 171.8181MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1103DI5-171.8181 Microchip Technology DSC1103 171.8181MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1103CI5-224.8200 Microchip Technology DSC1103 224.82MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CL5-106.2500T Microchip Technology DSC1103 106.25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CL5-106.2500T Microchip Technology DSC1103 106.25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CL5-106.2500T Microchip Technology DSC1103 106.25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103BL5-062.5000 Microchip Technology DSC1103 62.5MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1103CL5-106.2500 Microchip Technology DSC1103 106.25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI5-233.2090T Microchip Technology DSC1103 233.209MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI5-233.2090 Microchip Technology DSC1103 233.209MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CE1-156.2500 Microchip Technology DSC1103 156.25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CE1-125.0000T Microchip Technology DSC1103 125MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103DI2-400.0000 Microchip Technology DSC1103 400MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1103DI2-400.0000T Microchip Technology DSC1103 400MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1103DI2-200.0000T Microchip Technology DSC1103 200MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1103DI2-125.0000 Microchip Technology DSC1103 125MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1103DI2-148.5000 Microchip Technology DSC1103 148.5MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1103DI2-200.0000 Microchip Technology DSC1103 200MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1103DI2-019.2000 Microchip Technology DSC1103 19.2MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1103CE1-200.0000 Microchip Technology DSC1103 200MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CE2-135.0000 Microchip Technology DSC1103 135MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CE2-200.0000 Microchip Technology DSC1103 200MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI1-100.0000 Microchip Technology DSC1103 100MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI1-200.0000 Microchip Technology DSC1103 200MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI1-122.8800 Microchip Technology DSC1103 122.88MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI1-125.0000 Microchip Technology DSC1103 125MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CE2-135.0000T Microchip Technology DSC1103 135MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI1-156.2500T Microchip Technology DSC1103 156.25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI1-200.0000T Microchip Technology DSC1103 200MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI1-122.8800T Microchip Technology DSC1103 122.88MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI1-125.0000T Microchip Technology DSC1103 125MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103BE1-150.0000 Microchip Technology DSC1103 150MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1103AE1-100.0000T Microchip Technology DSC1103 100MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103AI2-025.0000T Microchip Technology DSC1103 25MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103AI1-125.0000 Microchip Technology DSC1103 125MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103CI2-100.0000 Microchip Technology DSC1103 100MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI2-125.0000 Microchip Technology DSC1103 125MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI2-156.2500 Microchip Technology DSC1103 156.25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI2-148.5000 Microchip Technology DSC1103 148.5MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103AI2-100.0000T Microchip Technology DSC1103 100MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103BI2-125.0000T Microchip Technology DSC1103 125MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1103CI2-125.0000T Microchip Technology DSC1103 125MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103AI2-130.0000T Microchip Technology DSC1103 130MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103CI2-200.0000T Microchip Technology DSC1103 200MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103AI2-171.8181T Microchip Technology DSC1103 171.8181MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103BI2-135.0000T Microchip Technology DSC1103 135MHz 2.25 V ~ 3.6V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1103BI2-148.5000T Microchip Technology DSC1103 148.5MHz 2.25 V ~ 3.6V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1103BI2-100.0000 Microchip Technology DSC1103 100MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1103BI2-125.0000 Microchip Technology DSC1103 125MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1103BI2-150.0000 Microchip Technology DSC1103 150MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1103AI2-100.0000 Microchip Technology DSC1103 100MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103AI2-200.0000 Microchip Technology DSC1103 200MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103AI2-171.8181 Microchip Technology DSC1103 171.8181MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103AI2-125.0000 Microchip Technology DSC1103 125MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103NI2-400.0000 Microchip Technology DSC1103 400MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103BL2-125.0000 Microchip Technology DSC1103 125MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1103BL2-200.0000 Microchip Technology DSC1103 200MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1103BL2-125.0000T Microchip Technology DSC1103 125MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1103BL2-200.0000T Microchip Technology DSC1103 200MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1103CE5-156.2500 Microchip Technology DSC1103 156.25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CE5-150.0000 Microchip Technology DSC1103 150MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI5-025.0000 Microchip Technology DSC1103 25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI5-106.2500T Microchip Technology DSC1103 106.25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI5-200.0000T Microchip Technology DSC1103 200MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI5-100.0000 Microchip Technology DSC1103 100MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI5-106.2500 Microchip Technology DSC1103 106.25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI5-200.0000 Microchip Technology DSC1103 200MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI5-233.3333 Microchip Technology DSC1103 233.3333MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI5-100.0000T Microchip Technology DSC1103 100MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI5-050.0000 Microchip Technology DSC1103 50MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI5-148.5000 Microchip Technology DSC1103 148.5MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI5-075.0000 Microchip Technology DSC1103 75MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI5-114.0000 Microchip Technology DSC1103 114MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI5-140.0000 Microchip Technology DSC1103 140MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI5-224.8200T Microchip Technology DSC1103 224.82MHz 2.25 V ~ 3.6V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103AI5-120.0000 Microchip Technology DSC1103 120MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103AI5-125.0000 Microchip Technology DSC1103 125MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103AI5-156.2500 Microchip Technology DSC1103 156.25MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103AI5-250.0000 Microchip Technology DSC1103 250MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103NE1-125.0000 Microchip Technology DSC1103 125MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103BL5-062.5000T Microchip Technology DSC1103 62.5MHz 2.25 V ~ 3.6V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1103DL5-125.0000T Microchip Technology DSC1103 125MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1103DL5-125.0000 Microchip Technology DSC1103 125MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1103DI5-125.0060 Microchip Technology DSC1103 125.006MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1103DI5-125.0060T Microchip Technology DSC1103 125.006MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1103BE1-150.0000T Microchip Technology DSC1103 150MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1103AI1-112.0000 Microchip Technology DSC1103 112MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103AI1-112.0000T Microchip Technology DSC1103 112MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103AI1-160.0000 Microchip Technology DSC1103 160MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103AI1-160.0000T Microchip Technology DSC1103 160MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103AI5-025.0000 Microchip Technology DSC1103 25MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103AI5-025.0000T Microchip Technology DSC1103 25MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103CE2-074.2500 Microchip Technology DSC1103 74.25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CE2-074.2500T Microchip Technology DSC1103 74.25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI5-012.0000 Microchip Technology DSC1103 12MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI5-012.0000T Microchip Technology DSC1103 12MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI5-025.0000T Microchip Technology DSC1103 25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103DI1-400.0000 Microchip Technology DSC1103 400MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1103DI1-400.0000T Microchip Technology DSC1103 400MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1103DI5-125.0000 Microchip Technology DSC1103 125MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1103DI5-125.0000T Microchip Technology DSC1103 125MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1103NI1-074.2500 Microchip Technology DSC1103 74.25MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103NI1-074.2500T Microchip Technology DSC1103 74.25MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103NI1-148.5000 Microchip Technology DSC1103 148.5MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103NI1-148.5000T Microchip Technology DSC1103 148.5MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103NI1-400.0000 Microchip Technology DSC1103 400MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103NI1-400.0000T Microchip Technology DSC1103 400MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103AE1-075.0000T Microchip Technology DSC1103 75MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103AE1-083.3300T Microchip Technology DSC1103 83.33MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103AE1-083.3333T Microchip Technology DSC1103 83.3333MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103AE1-106.2500T Microchip Technology DSC1103 106.25MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103AE1-125.0000T Microchip Technology DSC1103 125MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103AE1-200.0000T Microchip Technology DSC1103 200MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103AE1-212.5000T Microchip Technology DSC1103 212.5MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103AE1-300.0000T Microchip Technology DSC1103 300MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103AI2-250.0000T Microchip Technology DSC1103 250MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103AI5-120.0000T Microchip Technology DSC1103 120MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103BE1-075.0000T Microchip Technology DSC1103 75MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1103BI1-075.0000T Microchip Technology DSC1103 75MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1103BI2-150.0000T Microchip Technology DSC1103 150MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1103CE1-148.5000T Microchip Technology DSC1103 148.5MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CE2-156.2500T Microchip Technology DSC1103 156.25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CE2-168.5000T Microchip Technology DSC1103 168.5MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CE2-200.0000T Microchip Technology DSC1103 200MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CE5-100.0000T Microchip Technology DSC1103 100MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CE5-156.2500T Microchip Technology DSC1103 156.25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI1-100.0000T Microchip Technology DSC1103 100MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI2-122.8800T Microchip Technology DSC1103 122.88MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI2-156.2500T Microchip Technology DSC1103 156.25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI2-160.0000T Microchip Technology DSC1103 160MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI2-166.0000T Microchip Technology DSC1103 166MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI2-244.0000T Microchip Technology DSC1103 244MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI5-125.0000T Microchip Technology DSC1103 125MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI5-156.2500T Microchip Technology DSC1103 156.25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI5-233.3333T Microchip Technology DSC1103 233.3333MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103DE1-148.2500T Microchip Technology DSC1103 148.25MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1103DE1-148.5000T Microchip Technology DSC1103 148.5MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1103DI2-125.0000T Microchip Technology DSC1103 125MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1103DI2-148.5000T Microchip Technology DSC1103 148.5MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1103AE1-075.0000 Microchip Technology DSC1103 75MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103AE1-083.3300 Microchip Technology DSC1103 83.33MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103AE1-083.3333 Microchip Technology DSC1103 83.3333MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103AE1-100.0000 Microchip Technology DSC1103 100MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103AE1-106.2500 Microchip Technology DSC1103 106.25MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103AE1-125.0000 Microchip Technology DSC1103 125MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103AE1-200.0000 Microchip Technology DSC1103 200MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103AE1-212.5000 Microchip Technology DSC1103 212.5MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103AE1-300.0000 Microchip Technology DSC1103 300MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103AI2-250.0000 Microchip Technology DSC1103 250MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103BE1-075.0000 Microchip Technology DSC1103 75MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1103BI1-074.2129 Microchip Technology DSC1103 74.2129MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1103BI1-100.0000 Microchip Technology DSC1103 100MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1103BI1-120.0000 Microchip Technology DSC1103 120MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1103BI1-150.0000 Microchip Technology DSC1103 150MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1103BI1-200.0000 Microchip Technology DSC1103 200MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1103CE1-148.5000 Microchip Technology DSC1103 148.5MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CE1-212.5000 Microchip Technology DSC1103 212.5MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CE2-156.2500 Microchip Technology DSC1103 156.25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CE2-168.5000 Microchip Technology DSC1103 168.5MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI2-122.8800 Microchip Technology DSC1103 122.88MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI2-160.0000 Microchip Technology DSC1103 160MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI2-166.0000 Microchip Technology DSC1103 166MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI2-244.0000 Microchip Technology DSC1103 244MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI5-156.2500 Microchip Technology DSC1103 156.25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103DE1-148.2500 Microchip Technology DSC1103 148.25MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1103DE1-148.5000 Microchip Technology DSC1103 148.5MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1103BL1-100.0000T Microchip Technology DSC1103 100MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1103BL1-150.0000T Microchip Technology DSC1103 150MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1103BL1-200.0000T Microchip Technology DSC1103 200MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1103CE5-150.0000T Microchip Technology DSC1103 150MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI2-148.5000T Microchip Technology DSC1103 148.5MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI2-180.0000T Microchip Technology DSC1103 180MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI5-050.0000T Microchip Technology DSC1103 50MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI5-148.5000T Microchip Technology DSC1103 148.5MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI5-180.0000T Microchip Technology DSC1103 180MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103DI1-050.0000T Microchip Technology DSC1103 50MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1103DI2-019.2000T Microchip Technology DSC1103 19.2MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1103DI2-050.0000T Microchip Technology DSC1103 50MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1103NI1-200.0000T Microchip Technology DSC1103 200MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103NI2-400.0000T Microchip Technology DSC1103 400MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103AI2-025.0000 Microchip Technology DSC1103 25MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103AI2-130.0000 Microchip Technology DSC1103 130MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103BL1-100.0000 Microchip Technology DSC1103 100MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1103BL1-150.0000 Microchip Technology DSC1103 150MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1103BL1-200.0000 Microchip Technology DSC1103 200MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1103CI2-180.0000 Microchip Technology DSC1103 180MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI2-200.0000 Microchip Technology DSC1103 200MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI5-180.0000 Microchip Technology DSC1103 180MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103DI1-050.0000 Microchip Technology DSC1103 50MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1103DI2-050.0000 Microchip Technology DSC1103 50MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1103NI1-200.0000 Microchip Technology DSC1103 200MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103AE2-050.0000 Microchip Technology DSC1103 50MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103AE2-050.0000T Microchip Technology DSC1103 50MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103AI1-125.0000T Microchip Technology DSC1103 125MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103AI5-250.0000T Microchip Technology DSC1103 250MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103CE5-266.6667 Microchip Technology DSC1103 266.6667MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CE5-266.6667T Microchip Technology DSC1103 266.6667MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI5-075.0000T Microchip Technology DSC1103 75MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI5-114.0000T Microchip Technology DSC1103 114MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI5-140.0000T Microchip Technology DSC1103 140MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
公司：深圳市億金電子有限公司
SHENZHEN YIJIN ELECTRONICS CO;LTD
電話：0755-27876565
手機：18924600166
QQ：857950243
郵箱：yijindz@163.com
網站：http://www.sdyoujian.cn
地址：廣東省深圳市寶安區新安107國道旁

相關產品

誠征下列地區 晶振 | 石英晶振 | 圓柱晶振 | 貼片晶振 | 陶瓷晶振 | 石英晶體諧振器 | 頻率元件 的合作伙伴：
深圳市 廣州市 北京 上海 東莞 佛山 中山 順德 珠海 杭州 溫州 武漢 長沙 南京 大連 長春 西安 鄭州 澳門 沈陽 南寧 昆明 濟南 重慶 成都
kf
kf
close
kf 億金微信號
主站蜘蛛池模板： 亚洲综合久久综合激情久久 | 99热这里只有精 | a级亚洲片精品久久久久久久 | 亚洲精品久久久久久婷婷 | 四虎2020| 99久久免费国产精品特黄 | 一本久久精品一区二区 | 一本久久精品一区二区 | 亚洲精品自拍视频 | 成人亚洲欧美日韩中文字幕 | 国产在线视频一区 | 精品午夜久久影视 | 色国产在线视频一区 | 国产精品二区页在线播放 | 热热涩热热狠狠色香蕉综合 | 欧美成人hd | 亚洲综合激情六月婷婷在线观看 | 美女很黄很黄免费的 | 福利视频自拍 | 国产成人免费网站在线观看 | 久操国产视频 | 久久精品播放 | 69久久| 九九在线免费视频 | 奇米七七七| 在线成人tv天堂中文字幕 | 91视频香蕉| 久久精品国产一区二区三区肥胖 | 国产福利一区二区三区在线视频 | 亚洲国产人成在线观看69网站 | 天天干天天射天天插 | 91热久久免费频精品99欧美 | 中文字幕一区二区三区精品 | 中文精品久久久久国产网站 | 欧美综合图区亚欧综合图区 | 国产免费一区二区三区免费视频 | 视频二区 素人 欧美 日韩 | 成人国产精品视频频 | 久久手机视频 | 91亚洲精品国产第一区 | 精品国产第一国产综合精品 |
