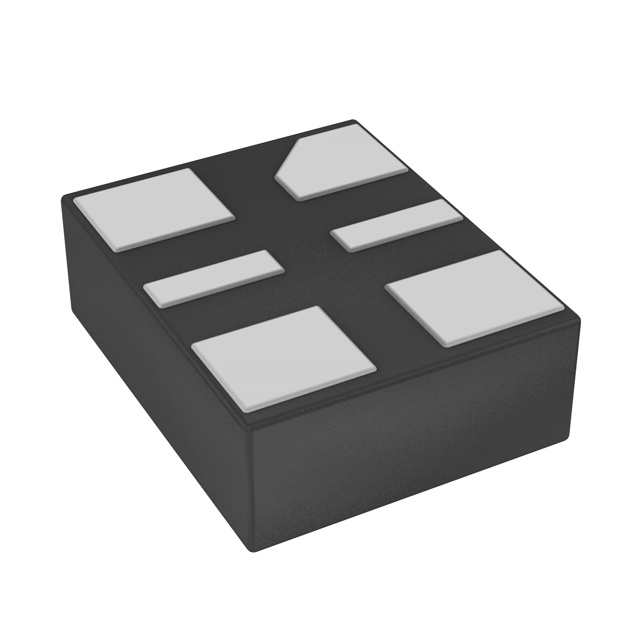

Microchip品牌-DSC1103DI2-312.5000-6G存儲網絡晶振
- 頻率：312.5MHz
- 尺寸：2.5×2.0mm
- 應 用： 歐美晶振,Microchip晶振,DSC1103有源晶振,DSC1103DI2-312.5000晶振,SMD晶振,2520mm晶振,LVDS晶振,貼片石英晶振,頻率312.5MHz,電壓3.3V,工作溫度-40~85°C,頻率穩定性25ppm,輕薄小晶振,低相位抖動晶振,無鉛環保晶振,6G...
-
-
Microchip品牌-DSC1103DI2-312.5000-6G存儲網絡晶振,歐美晶振,Microchip晶振,DSC1103有源晶振,DSC1103DI2-312.5000晶振,SMD晶振,2520mm晶振,LVDS晶振,貼片石英晶振,頻率312.5MHz,電壓3.3V,工作溫度-40~85°C,頻率穩定性25ppm,輕薄小晶振,低相位抖動晶振,無鉛環保晶振,6G存儲區域網絡晶振,無源光網絡晶振,顯示端口晶振,便攜式設備晶振.
Microchip品牌-DSC1103DI2-312.5000-6G存儲網絡晶振特點：
•低RMS相位抖動:<1 ps(類型)
•高穩定性:±10 ppm，±20 ppm，±25 ppm，±50 ppm
•寬溫度范圍:
-Ext.工業:- 40°C至+105°C
-工業:- 40℃~ +85℃
-商用:- 20℃~ +70℃
•高電源噪聲抑制:-50 dBc
•寬頻率范圍:2.3 MHz至460 MHz
•小的行業標準足跡
- 2.5 mm × 2.0 mm, 3.2 mm × 2.5 mm, 5.0 mmX 3.2 mm和7.0 mm X 5.0 mm
•卓越的抗沖擊和抗振動能力
-符合MIL-STD-883標準
•高可靠性
- MTF比石英振蕩器好20倍
•低電流消耗
•電源范圍2.25至3.63V
•待機和輸出使能功能
•無鉛，符合RoHS標準
Microchip品牌-DSC1103DI2-312.5000-6G存儲網絡晶振規格表
| 項目 | 規格說明 | 條件 |
| 額定頻率 | 312.5MHz | 請聯系我們以便獲取其它可用頻率的相關信息 |
| 電源電壓 | 3.3V | |
| 儲存溫度 | -55℃~+150℃ | 裸存 |
| 工作溫度 | -40℃~ +85℃ | |
| 頻率穩定度 | ±25ppm | 包括由初始公差、溫度和電源電壓引起的頻率變化 |
| 老化 | ±5ppm | 1 year @ +25°C |
| 電流 | 32mA Max |
Output Enabled, RL = 100Ω
|
| 負載 | 15pf | |
| 輸出偏移電壓（Vos） | 1.4V Max |
R = 100Ω Differential
|
| 增量失調電壓（ΔVOS） | 50mV Max |
-
|
| 輸出上升下降時間 | 200ps Max |
20%/80% RL = 50Ω,CL=15pF |
| 占空比 | 48%~52% | |
| 輸入邏輯電平高（VIH） | 0.75×VDD Min |
Input logic high
|
| 輸入邏輯電平低（VIL） | 0.25x VDD Max |
Input logic low
|
| 起始時間 | 5 ms Max | T = +25°C |
| 周期抖動 | 2.5psRMS |
-
|
| 集成相位噪聲 |
2psRMS
|
12 kHz to 20 MHz @ 156.25 MHz
|
.jpg)

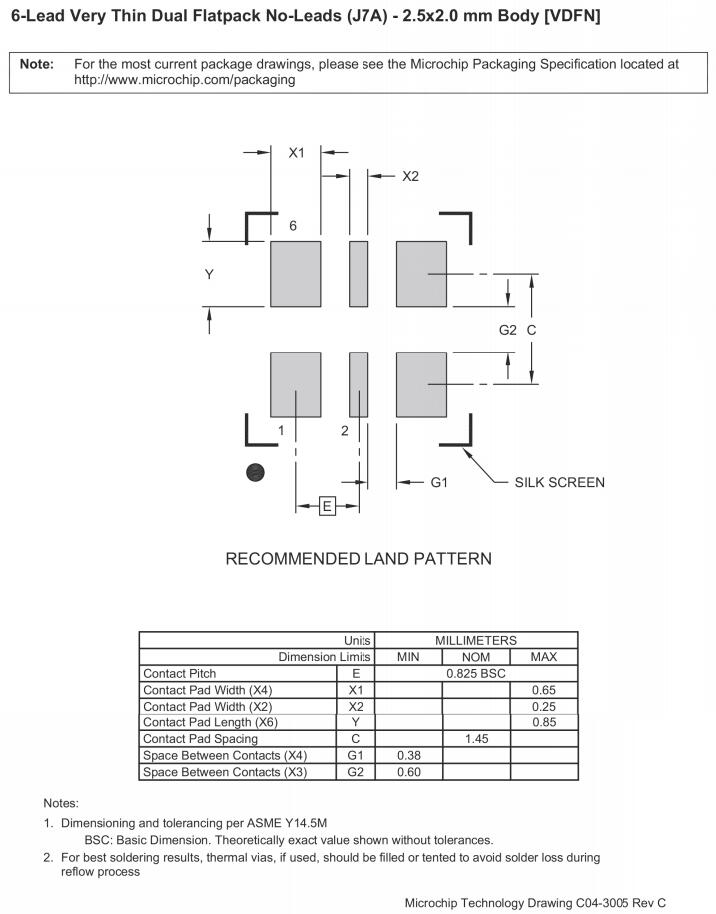

Microchip品牌-DSC1103DI2-312.5000-6G存儲網絡晶振尺寸圖
| 原廠代碼 | 晶振品牌 | 型號 | 頻率 | 電壓 | 尺寸 |
| DSC1103DI2-312.5000 | Microchip Technology | DSC1103 | 312.5MHz | 2.25 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1103CI5-300.0000 | Microchip Technology | DSC1103 | 300MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1103CI1-075.0000 | Microchip Technology | DSC1103 | 75MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1103CE1-125.0000 | Microchip Technology | DSC1103 | 125MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1103BI2-148.5000 | Microchip Technology | DSC1103 | 148.5MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1103BI2-135.0000 | Microchip Technology | DSC1103 | 135MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1103BI2-100.0000T | Microchip Technology | DSC1103 | 100MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1103BI2-100.0000T | Microchip Technology | DSC1103 | 100MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1103BI2-100.0000T | Microchip Technology | DSC1103 | 100MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1103CE1-200.0000T | Microchip Technology | DSC1103 | 200MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1103CE1-200.0000T | Microchip Technology | DSC1103 | 200MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1103CE1-200.0000T | Microchip Technology | DSC1103 | 200MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1103CE1-156.2500T | Microchip Technology | DSC1103 | 156.25MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1103CE1-156.2500T | Microchip Technology | DSC1103 | 156.25MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1103CE1-156.2500T | Microchip Technology | DSC1103 | 156.25MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1103DI5-171.8181T | Microchip Technology | DSC1103 | 171.8181MHz | 2.25 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1103DI5-171.8181T | Microchip Technology | DSC1103 | 171.8181MHz | 2.25 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1103DI5-171.8181T | Microchip Technology | DSC1103 | 171.8181MHz | 2.25 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1103DI5-171.8181 | Microchip Technology | DSC1103 | 171.8181MHz | 2.25 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1103CI5-224.8200 | Microchip Technology | DSC1103 | 224.82MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1103CL5-106.2500T | Microchip Technology | DSC1103 | 106.25MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1103CL5-106.2500T | Microchip Technology | DSC1103 | 106.25MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1103CL5-106.2500T | Microchip Technology | DSC1103 | 106.25MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1103BL5-062.5000 | Microchip Technology | DSC1103 | 62.5MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1103CL5-106.2500 | Microchip Technology | DSC1103 | 106.25MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1103CI5-233.2090T | Microchip Technology | DSC1103 | 233.209MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1103CI5-233.2090 | Microchip Technology | DSC1103 | 233.209MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1103CE1-156.2500 | Microchip Technology | DSC1103 | 156.25MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1103CE1-125.0000T | Microchip Technology | DSC1103 | 125MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1103DI2-400.0000 | Microchip Technology | DSC1103 | 400MHz | 2.25 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1103DI2-400.0000T | Microchip Technology | DSC1103 | 400MHz | 2.25 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1103DI2-200.0000T | Microchip Technology | DSC1103 | 200MHz | 2.25 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1103DI2-125.0000 | Microchip Technology | DSC1103 | 125MHz | 2.25 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1103DI2-148.5000 | Microchip Technology | DSC1103 | 148.5MHz | 2.25 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1103DI2-200.0000 | Microchip Technology | DSC1103 | 200MHz | 2.25 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1103DI2-019.2000 | Microchip Technology | DSC1103 | 19.2MHz | 2.25 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1103CE1-200.0000 | Microchip Technology | DSC1103 | 200MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1103CE2-135.0000 | Microchip Technology | DSC1103 | 135MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1103CE2-200.0000 | Microchip Technology | DSC1103 | 200MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1103CI1-100.0000 | Microchip Technology | DSC1103 | 100MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1103CI1-200.0000 | Microchip Technology | DSC1103 | 200MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1103CI1-122.8800 | Microchip Technology | DSC1103 | 122.88MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1103CI1-125.0000 | Microchip Technology | DSC1103 | 125MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1103CE2-135.0000T | Microchip Technology | DSC1103 | 135MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1103CI1-156.2500T | Microchip Technology | DSC1103 | 156.25MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1103CI1-200.0000T | Microchip Technology | DSC1103 | 200MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1103CI1-122.8800T | Microchip Technology | DSC1103 | 122.88MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1103CI1-125.0000T | Microchip Technology | DSC1103 | 125MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1103BE1-150.0000 | Microchip Technology | DSC1103 | 150MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1103AE1-100.0000T | Microchip Technology | DSC1103 | 100MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1103AI2-025.0000T | Microchip Technology | DSC1103 | 25MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1103AI1-125.0000 | Microchip Technology | DSC1103 | 125MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1103CI2-100.0000 | Microchip Technology | DSC1103 | 100MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1103CI2-125.0000 | Microchip Technology | DSC1103 | 125MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1103CI2-156.2500 | Microchip Technology | DSC1103 | 156.25MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1103CI2-148.5000 | Microchip Technology | DSC1103 | 148.5MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1103AI2-100.0000T | Microchip Technology | DSC1103 | 100MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1103BI2-125.0000T | Microchip Technology | DSC1103 | 125MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1103CI2-125.0000T | Microchip Technology | DSC1103 | 125MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1103AI2-130.0000T | Microchip Technology | DSC1103 | 130MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1103CI2-200.0000T | Microchip Technology | DSC1103 | 200MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1103AI2-171.8181T | Microchip Technology | DSC1103 | 171.8181MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1103BI2-135.0000T | Microchip Technology | DSC1103 | 135MHz | 2.25 V ~ 3.6V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1103BI2-148.5000T | Microchip Technology | DSC1103 | 148.5MHz | 2.25 V ~ 3.6V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1103BI2-100.0000 | Microchip Technology | DSC1103 | 100MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1103BI2-125.0000 | Microchip Technology | DSC1103 | 125MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1103BI2-150.0000 | Microchip Technology | DSC1103 | 150MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1103AI2-100.0000 | Microchip Technology | DSC1103 | 100MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1103AI2-200.0000 | Microchip Technology | DSC1103 | 200MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1103AI2-171.8181 | Microchip Technology | DSC1103 | 171.8181MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1103AI2-125.0000 | Microchip Technology | DSC1103 | 125MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1103NI2-400.0000 | Microchip Technology | DSC1103 | 400MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1103BL2-125.0000 | Microchip Technology | DSC1103 | 125MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1103BL2-200.0000 | Microchip Technology | DSC1103 | 200MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1103BL2-125.0000T | Microchip Technology | DSC1103 | 125MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1103BL2-200.0000T | Microchip Technology | DSC1103 | 200MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1103CE5-156.2500 | Microchip Technology | DSC1103 | 156.25MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1103CE5-150.0000 | Microchip Technology | DSC1103 | 150MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1103CI5-025.0000 | Microchip Technology | DSC1103 | 25MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1103CI5-106.2500T | Microchip Technology | DSC1103 | 106.25MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1103CI5-200.0000T | Microchip Technology | DSC1103 | 200MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1103CI5-100.0000 | Microchip Technology | DSC1103 | 100MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1103CI5-106.2500 | Microchip Technology | DSC1103 | 106.25MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1103CI5-200.0000 | Microchip Technology | DSC1103 | 200MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1103CI5-233.3333 | Microchip Technology | DSC1103 | 233.3333MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1103CI5-100.0000T | Microchip Technology | DSC1103 | 100MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1103CI5-050.0000 | Microchip Technology | DSC1103 | 50MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1103CI5-148.5000 | Microchip Technology | DSC1103 | 148.5MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1103CI5-075.0000 | Microchip Technology | DSC1103 | 75MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1103CI5-114.0000 | Microchip Technology | DSC1103 | 114MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1103CI5-140.0000 | Microchip Technology | DSC1103 | 140MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1103CI5-224.8200T | Microchip Technology | DSC1103 | 224.82MHz | 2.25 V ~ 3.6V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1103AI5-120.0000 | Microchip Technology | DSC1103 | 120MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1103AI5-125.0000 | Microchip Technology | DSC1103 | 125MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1103AI5-156.2500 | Microchip Technology | DSC1103 | 156.25MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1103AI5-250.0000 | Microchip Technology | DSC1103 | 250MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1103NE1-125.0000 | Microchip Technology | DSC1103 | 125MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1103BL5-062.5000T | Microchip Technology | DSC1103 | 62.5MHz | 2.25 V ~ 3.6V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1103DL5-125.0000T | Microchip Technology | DSC1103 | 125MHz | 2.25 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1103DL5-125.0000 | Microchip Technology | DSC1103 | 125MHz | 2.25 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1103DI5-125.0060 | Microchip Technology | DSC1103 | 125.006MHz | 2.25 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1103DI5-125.0060T | Microchip Technology | DSC1103 | 125.006MHz | 2.25 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1103BE1-150.0000T | Microchip Technology | DSC1103 | 150MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1103AI1-112.0000 | Microchip Technology | DSC1103 | 112MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1103AI1-112.0000T | Microchip Technology | DSC1103 | 112MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1103AI1-160.0000 | Microchip Technology | DSC1103 | 160MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1103AI1-160.0000T | Microchip Technology | DSC1103 | 160MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1103AI5-025.0000 | Microchip Technology | DSC1103 | 25MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1103AI5-025.0000T | Microchip Technology | DSC1103 | 25MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1103CE2-074.2500 | Microchip Technology | DSC1103 | 74.25MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1103CE2-074.2500T | Microchip Technology | DSC1103 | 74.25MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1103CI5-012.0000 | Microchip Technology | DSC1103 | 12MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1103CI5-012.0000T | Microchip Technology | DSC1103 | 12MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1103CI5-025.0000T | Microchip Technology | DSC1103 | 25MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1103DI1-400.0000 | Microchip Technology | DSC1103 | 400MHz | 2.25 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1103DI1-400.0000T | Microchip Technology | DSC1103 | 400MHz | 2.25 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1103DI5-125.0000 | Microchip Technology | DSC1103 | 125MHz | 2.25 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1103DI5-125.0000T | Microchip Technology | DSC1103 | 125MHz | 2.25 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1103NI1-074.2500 | Microchip Technology | DSC1103 | 74.25MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1103NI1-074.2500T | Microchip Technology | DSC1103 | 74.25MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1103NI1-148.5000 | Microchip Technology | DSC1103 | 148.5MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1103NI1-148.5000T | Microchip Technology | DSC1103 | 148.5MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1103NI1-400.0000 | Microchip Technology | DSC1103 | 400MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1103NI1-400.0000T | Microchip Technology | DSC1103 | 400MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1103AE1-075.0000T | Microchip Technology | DSC1103 | 75MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1103AE1-083.3300T | Microchip Technology | DSC1103 | 83.33MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1103AE1-083.3333T | Microchip Technology | DSC1103 | 83.3333MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1103AE1-106.2500T | Microchip Technology | DSC1103 | 106.25MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1103AE1-125.0000T | Microchip Technology | DSC1103 | 125MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1103AE1-200.0000T | Microchip Technology | DSC1103 | 200MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1103AE1-212.5000T | Microchip Technology | DSC1103 | 212.5MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1103AE1-300.0000T | Microchip Technology | DSC1103 | 300MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1103AI2-250.0000T | Microchip Technology | DSC1103 | 250MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1103AI5-120.0000T | Microchip Technology | DSC1103 | 120MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1103BE1-075.0000T | Microchip Technology | DSC1103 | 75MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1103BI1-075.0000T | Microchip Technology | DSC1103 | 75MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1103BI2-150.0000T | Microchip Technology | DSC1103 | 150MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1103CE1-148.5000T | Microchip Technology | DSC1103 | 148.5MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1103CE2-156.2500T | Microchip Technology | DSC1103 | 156.25MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1103CE2-168.5000T | Microchip Technology | DSC1103 | 168.5MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1103CE2-200.0000T | Microchip Technology | DSC1103 | 200MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1103CE5-100.0000T | Microchip Technology | DSC1103 | 100MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1103CE5-156.2500T | Microchip Technology | DSC1103 | 156.25MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1103CI1-100.0000T | Microchip Technology | DSC1103 | 100MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1103CI2-122.8800T | Microchip Technology | DSC1103 | 122.88MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1103CI2-156.2500T | Microchip Technology | DSC1103 | 156.25MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1103CI2-160.0000T | Microchip Technology | DSC1103 | 160MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1103CI2-166.0000T | Microchip Technology | DSC1103 | 166MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1103CI2-244.0000T | Microchip Technology | DSC1103 | 244MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1103CI5-125.0000T | Microchip Technology | DSC1103 | 125MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1103CI5-156.2500T | Microchip Technology | DSC1103 | 156.25MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1103CI5-233.3333T | Microchip Technology | DSC1103 | 233.3333MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1103DE1-148.2500T | Microchip Technology | DSC1103 | 148.25MHz | 2.25 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1103DE1-148.5000T | Microchip Technology | DSC1103 | 148.5MHz | 2.25 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1103DI2-125.0000T | Microchip Technology | DSC1103 | 125MHz | 2.25 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1103DI2-148.5000T | Microchip Technology | DSC1103 | 148.5MHz | 2.25 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1103AE1-075.0000 | Microchip Technology | DSC1103 | 75MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1103AE1-083.3300 | Microchip Technology | DSC1103 | 83.33MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1103AE1-083.3333 | Microchip Technology | DSC1103 | 83.3333MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1103AE1-100.0000 | Microchip Technology | DSC1103 | 100MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1103AE1-106.2500 | Microchip Technology | DSC1103 | 106.25MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1103AE1-125.0000 | Microchip Technology | DSC1103 | 125MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1103AE1-200.0000 | Microchip Technology | DSC1103 | 200MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1103AE1-212.5000 | Microchip Technology | DSC1103 | 212.5MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1103AE1-300.0000 | Microchip Technology | DSC1103 | 300MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1103AI2-250.0000 | Microchip Technology | DSC1103 | 250MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1103BE1-075.0000 | Microchip Technology | DSC1103 | 75MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1103BI1-074.2129 | Microchip Technology | DSC1103 | 74.2129MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1103BI1-100.0000 | Microchip Technology | DSC1103 | 100MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1103BI1-120.0000 | Microchip Technology | DSC1103 | 120MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1103BI1-150.0000 | Microchip Technology | DSC1103 | 150MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1103BI1-200.0000 | Microchip Technology | DSC1103 | 200MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1103CE1-148.5000 | Microchip Technology | DSC1103 | 148.5MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1103CE1-212.5000 | Microchip Technology | DSC1103 | 212.5MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1103CE2-156.2500 | Microchip Technology | DSC1103 | 156.25MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1103CE2-168.5000 | Microchip Technology | DSC1103 | 168.5MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1103CI2-122.8800 | Microchip Technology | DSC1103 | 122.88MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1103CI2-160.0000 | Microchip Technology | DSC1103 | 160MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1103CI2-166.0000 | Microchip Technology | DSC1103 | 166MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1103CI2-244.0000 | Microchip Technology | DSC1103 | 244MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1103CI5-156.2500 | Microchip Technology | DSC1103 | 156.25MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1103DE1-148.2500 | Microchip Technology | DSC1103 | 148.25MHz | 2.25 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1103DE1-148.5000 | Microchip Technology | DSC1103 | 148.5MHz | 2.25 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1103BL1-100.0000T | Microchip Technology | DSC1103 | 100MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1103BL1-150.0000T | Microchip Technology | DSC1103 | 150MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1103BL1-200.0000T | Microchip Technology | DSC1103 | 200MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1103CE5-150.0000T | Microchip Technology | DSC1103 | 150MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1103CI2-148.5000T | Microchip Technology | DSC1103 | 148.5MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1103CI2-180.0000T | Microchip Technology | DSC1103 | 180MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1103CI5-050.0000T | Microchip Technology | DSC1103 | 50MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1103CI5-148.5000T | Microchip Technology | DSC1103 | 148.5MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1103CI5-180.0000T | Microchip Technology | DSC1103 | 180MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1103DI1-050.0000T | Microchip Technology | DSC1103 | 50MHz | 2.25 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1103DI2-019.2000T | Microchip Technology | DSC1103 | 19.2MHz | 2.25 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1103DI2-050.0000T | Microchip Technology | DSC1103 | 50MHz | 2.25 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1103NI1-200.0000T | Microchip Technology | DSC1103 | 200MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1103NI2-400.0000T | Microchip Technology | DSC1103 | 400MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1103AI2-025.0000 | Microchip Technology | DSC1103 | 25MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1103AI2-130.0000 | Microchip Technology | DSC1103 | 130MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1103BL1-100.0000 | Microchip Technology | DSC1103 | 100MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1103BL1-150.0000 | Microchip Technology | DSC1103 | 150MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1103BL1-200.0000 | Microchip Technology | DSC1103 | 200MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1103CI2-180.0000 | Microchip Technology | DSC1103 | 180MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1103CI2-200.0000 | Microchip Technology | DSC1103 | 200MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1103CI5-180.0000 | Microchip Technology | DSC1103 | 180MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1103DI1-050.0000 | Microchip Technology | DSC1103 | 50MHz | 2.25 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1103DI2-050.0000 | Microchip Technology | DSC1103 | 50MHz | 2.25 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1103NI1-200.0000 | Microchip Technology | DSC1103 | 200MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1103AE2-050.0000 | Microchip Technology | DSC1103 | 50MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1103AE2-050.0000T | Microchip Technology | DSC1103 | 50MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1103AI1-125.0000T | Microchip Technology | DSC1103 | 125MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1103AI5-250.0000T | Microchip Technology | DSC1103 | 250MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1103CE5-266.6667 | Microchip Technology | DSC1103 | 266.6667MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1103CE5-266.6667T | Microchip Technology | DSC1103 | 266.6667MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1103CI5-075.0000T | Microchip Technology | DSC1103 | 75MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1103CI5-114.0000T | Microchip Technology | DSC1103 | 114MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1103CI5-140.0000T | Microchip Technology | DSC1103 | 140MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
.jpg)
.jpg)
SHENZHEN YIJIN ELECTRONICS CO;LTD
電話：0755-27876565
手機：18924600166
QQ：857950243
郵箱：yijindz@163.com
網站：http://www.sdyoujian.cn
地址：廣東省深圳市寶安區新安107國道旁
銷售代表
