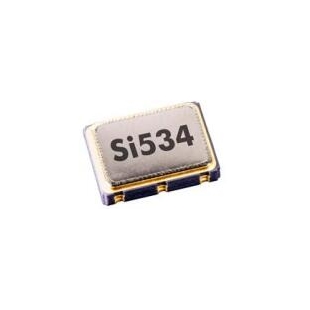

更多>>Skyworks晶振,534BC312M500DGR,6G路由器晶振
- 頻率：312.5MHz
- 尺寸：7.0×5.0mm
- 應 用： Skyworks晶振,Si534有源晶振,進口晶振,石英晶體振蕩器,7050mm晶振,534BC312M500DGR晶振,貼片石英晶振,低抖動晶振,高可靠性晶振,6G路由器晶振,時鐘和數據恢復晶振,信息娛樂系統晶振.
-
-
Skyworks晶振,534BC312M500DGR,6G路由器晶振,Skyworks晶振,Si534有源晶振采用了Skyworks Solutions的先進技術DSPLL®電路在高頻下提供低抖動時鐘,Si534可提供從10到945 MHz的任意速率輸出頻率,并選擇頻率到1400MHz,不像傳統的XO對于每個輸出頻率有不同的晶體,Si534使用一個固定晶體提供寬范圍的輸出頻率,這種基于集成電路的方法允許晶體諧振器提供卓越的頻率穩定性和可靠性,7050mm晶振,貼片石英晶振,6G路由器晶振,時鐘和數據恢復晶振,信息娛樂系統晶振.
Skyworks晶振,534BC312M500DGR,6G路由器晶振特點：
•可與任意速率輸出頻率從10MHz到945MHz和選擇頻率到1.4 GHz
•四個可選的輸出頻率
•第三代DSPLL®具有優越的抖動性能
•頻率穩定性優于SAW-based振蕩器
•內部固定晶頻，可靠性高，老化低
•具備CMOS, LVPECL，LVDS和CML輸出
•3.3, 2.5和1.8 V電源選項
•行業標準的5 × 7mm封裝和引腳
•無鉛，符合RoHS標準
Skyworks晶振,534BC312M500DGR,6G路由器晶振規格表
| 項目 | 符號 | 規格說明 | 條件 |
| 額定頻率 | f_nom | 312.5MHz | 請聯系我們以便獲取其它可用頻率的相關信息 |
| 電源電壓 | Vcc | 3.3V | |
| 儲存溫度 | T_stg | -55℃~+125℃ | 裸存 |
| 工作溫度 | T_use | -40℃~ +85℃ | |
| 頻率穩定性 | f_tol | ±7 ppm | +25℃,超出標準的規格說明請聯系我們 |
| 電源電流 | IDD | 98mA Max |
LVDS
|
| 對稱性（占空比） | SYM | 45%~55% | 在輸出交叉點 |
| 輸出電壓 | VOD | 0.9VPP Max |
LVDS
|
| VO | 1.275V Max | ||
| 輸入電壓 | VIH | 0.75XVDD Min |
|
| VIL | 0.5V Max | ||
| 上升下降時間 | tr/tf | 350ps Max |
LVDS
|
| 起始時間 | t str | 10ms Max | |
| 相位抖動 | tpj | 0.42ps Max |
Differential Formats
|
.jpg)
Skyworks晶振,534BC312M500DGR,6G路由器晶振尺寸圖
| 原廠編碼 | 品牌 | 型號 | 頻率 | 輸出 | 電壓 | 頻率穩定性 |
| 535AC100M000DG | Skyworks Solutions Inc. | Si535 | 100 MHz | LVPECL | 3.3V | ±7ppm |
| 535AB125M000DGR | Skyworks Solutions Inc. | Si535 | 125 MHz | LVPECL | 3.3V | ±20ppm |
| 535FB125M000DG | Skyworks Solutions Inc. | Si535 | 125 MHz | LVDS | 2.5V | ±20ppm |
| 535FB156M250DG | Skyworks Solutions Inc. | Si535 | 156.25 MHz | LVDS | 2.5V | ±20ppm |
| 535AC106M250DG | Skyworks Solutions Inc. | Si535 | 106.25 MHz | LVPECL | 3.3V | ±7ppm |
| 535BB156M250DG | Skyworks Solutions Inc. | Si535 | 156.25 MHz | LVDS | 3.3V | ±20ppm |
| 535AC156M250DG | Skyworks Solutions Inc. | Si535 | 156.25 MHz | LVPECL | 3.3V | ±7ppm |
| 535BC159M375DGR | Skyworks Solutions Inc. | Si535 | 159.375 MHz | LVDS | 3.3V | ±7ppm |
| 535BC312M500DGR | Skyworks Solutions Inc. | Si535 | 312.5 MHz | LVDS | 3.3V | ±7ppm |
| 535FB000172DGR | Skyworks Solutions Inc. | Si535 | 166.6286 MHz | LVDS | 2.5V | ±20ppm |
| 535FB000175DGR | Skyworks Solutions Inc. | Si535 | 167.3316 MHz | LVDS | 2.5V | ±20ppm |
| 535FB000292DGR | Skyworks Solutions Inc. | Si535 | 161.1328 MHz | LVDS | 2.5V | ±20ppm |
| 535FB000305DGR | Skyworks Solutions Inc. | Si535 | 156.2578 MHz | LVDS | 2.5V | ±20ppm |
| 535FB106M250DGR | Skyworks Solutions Inc. | Si535 | 106.25 MHz | LVDS | 2.5V | ±20ppm |
| 535FB150M000DGR | Skyworks Solutions Inc. | Si535 | 150 MHz | LVDS | 2.5V | ±20ppm |
| 535FB155M520DGR | Skyworks Solutions Inc. | Si535 | 155.52 MHz | LVDS | 2.5V | ±20ppm |
| 535FB159M375DGR | Skyworks Solutions Inc. | Si535 | 159.375 MHz | LVDS | 2.5V | ±20ppm |
| 535FB212M500DGR | Skyworks Solutions Inc. | Si535 | 212.5 MHz | LVDS | 2.5V | ±20ppm |
| 535FB312M500DGR | Skyworks Solutions Inc. | Si535 | 312.5 MHz | LVDS | 2.5V | ±20ppm |
| 535FC000172DGR | Skyworks Solutions Inc. | Si535 | 166.6286 MHz | LVDS | 2.5V | ±7ppm |
| 535FC000175DGR | Skyworks Solutions Inc. | Si535 | 167.3316 MHz | LVDS | 2.5V | ±7ppm |
| 535FC000305DGR | Skyworks Solutions Inc. | Si535 | 156.2578 MHz | LVDS | 2.5V | ±7ppm |
| 535FC106M250DGR | Skyworks Solutions Inc. | Si535 | 106.25 MHz | LVDS | 2.5V | ±7ppm |
| 535FC150M000DGR | Skyworks Solutions Inc. | Si535 | 150 MHz | LVDS | 2.5V | ±7ppm |
| 535FC155M520DGR | Skyworks Solutions Inc. | Si535 | 155.52 MHz | LVDS | 2.5V | ±7ppm |
| 535FC156M250DGR | Skyworks Solutions Inc. | Si535 | 156.25 MHz | LVDS | 2.5V | ±7ppm |
| 535FC159M375DGR | Skyworks Solutions Inc. | Si535 | 159.375 MHz | LVDS | 2.5V | ±7ppm |
| 535FC212M500DGR | Skyworks Solutions Inc. | Si535 | 212.5 MHz | LVDS | 2.5V | ±7ppm |
| 535FC312M500DGR | Skyworks Solutions Inc. | Si535 | 312.5 MHz | LVDS | 2.5V | ±7ppm |
| 535BB000172DGR | Skyworks Solutions Inc. | Si535 | 166.6286 MHz | LVDS | 3.3V | ±20ppm |
| 535BB000175DGR | Skyworks Solutions Inc. | Si535 | 167.3316 MHz | LVDS | 3.3V | ±20ppm |
| 535BB000292DGR | Skyworks Solutions Inc. | Si535 | 161.1328 MHz | LVDS | 3.3V | ±20ppm |
| 535BB000305DGR | Skyworks Solutions Inc. | Si535 | 156.2578 MHz | LVDS | 3.3V | ±20ppm |
| 535BB000335DGR | Skyworks Solutions Inc. | Si535 | 156.2539 MHz | LVDS | 3.3V | ±20ppm |
| 535BB106M250DGR | Skyworks Solutions Inc. | Si535 | 106.25 MHz | LVDS | 3.3V | ±20ppm |
| 535BB150M000DGR | Skyworks Solutions Inc. | Si535 | 150 MHz | LVDS | 3.3V | ±20ppm |
| 535BB155M520DGR | Skyworks Solutions Inc. | Si535 | 155.52 MHz | LVDS | 3.3V | ±20ppm |
| 535BB159M375DGR | Skyworks Solutions Inc. | Si535 | 159.375 MHz | LVDS | 3.3V | ±20ppm |
| 535BB212M500DGR | Skyworks Solutions Inc. | Si535 | 212.5 MHz | LVDS | 3.3V | ±20ppm |
| 535BC000172DGR | Skyworks Solutions Inc. | Si535 | 166.6286 MHz | LVDS | 3.3V | ±7ppm |
| 535BC000175DGR | Skyworks Solutions Inc. | Si535 | 167.3316 MHz | LVDS | 3.3V | ±7ppm |
| 535BC000292DGR | Skyworks Solutions Inc. | Si535 | 161.1328 MHz | LVDS | 3.3V | ±7ppm |
| 535BC000305DGR | Skyworks Solutions Inc. | Si535 | 156.2578 MHz | LVDS | 3.3V | ±7ppm |
| 535BC150M000DGR | Skyworks Solutions Inc. | Si535 | 150 MHz | LVDS | 3.3V | ±7ppm |
| 535BC155M520DGR | Skyworks Solutions Inc. | Si535 | 155.52 MHz | LVDS | 3.3V | ±7ppm |
| 535BB000172DG | Skyworks Solutions Inc. | Si535 | 166.6286 MHz | LVDS | 3.3V | ±20ppm |
| 535BB000175DG | Skyworks Solutions Inc. | Si535 | 167.3316 MHz | LVDS | 3.3V | ±20ppm |
| 535BB000292DG | Skyworks Solutions Inc. | Si535 | 161.1328 MHz | LVDS | 3.3V | ±20ppm |
| 535BB000305DG | Skyworks Solutions Inc. | Si535 | 156.2578 MHz | LVDS | 3.3V | ±20ppm |
| 535BB000335DG | Skyworks Solutions Inc. | Si535 | 156.2539 MHz | LVDS | 3.3V | ±20ppm |
| 535BB106M250DG | Skyworks Solutions Inc. | Si535 | 106.25 MHz | LVDS | 3.3V | ±20ppm |
| 535BB150M000DG | Skyworks Solutions Inc. | Si535 | 150 MHz | LVDS | 3.3V | ±20ppm |
| 535BB155M520DG | Skyworks Solutions Inc. | Si535 | 155.52 MHz | LVDS | 3.3V | ±20ppm |
| 535BB159M375DG | Skyworks Solutions Inc. | Si535 | 159.375 MHz | LVDS | 3.3V | ±20ppm |
| 535BB212M500DG | Skyworks Solutions Inc. | Si535 | 212.5 MHz | LVDS | 3.3V | ±20ppm |
| 535BC000172DG | Skyworks Solutions Inc. | Si535 | 166.6286 MHz | LVDS | 3.3V | ±7ppm |
| 535BC000175DG | Skyworks Solutions Inc. | Si535 | 167.3316 MHz | LVDS | 3.3V | ±7ppm |
| 535BC000292DG | Skyworks Solutions Inc. | Si535 | 161.1328 MHz | LVDS | 3.3V | ±7ppm |
| 535BC000305DG | Skyworks Solutions Inc. | Si535 | 156.2578 MHz | LVDS | 3.3V | ±7ppm |
| 535BC150M000DG | Skyworks Solutions Inc. | Si535 | 150 MHz | LVDS | 3.3V | ±7ppm |
| 535BC155M520DG | Skyworks Solutions Inc. | Si535 | 155.52 MHz | LVDS | 3.3V | ±7ppm |
| 535BC159M375DG | Skyworks Solutions Inc. | Si535 | 159.375 MHz | LVDS | 3.3V | ±7ppm |
| 535BC312M500DG | Skyworks Solutions Inc. | Si535 | 312.5 MHz | LVDS | 3.3V | ±7ppm |
| 535FB000172DG | Skyworks Solutions Inc. | Si535 | 166.6286 MHz | LVDS | 2.5V | ±20ppm |
| 535FB000175DG | Skyworks Solutions Inc. | Si535 | 167.3316 MHz | LVDS | 2.5V | ±20ppm |
| 535FB000292DG | Skyworks Solutions Inc. | Si535 | 161.1328 MHz | LVDS | 2.5V | ±20ppm |
| 535FB000305DG | Skyworks Solutions Inc. | Si535 | 156.2578 MHz | LVDS | 2.5V | ±20ppm |
| 535FB106M250DG | Skyworks Solutions Inc. | Si535 | 106.25 MHz | LVDS | 2.5V | ±20ppm |
| 535FB150M000DG | Skyworks Solutions Inc. | Si535 | 150 MHz | LVDS | 2.5V | ±20ppm |
| 535FB155M520DG | Skyworks Solutions Inc. | Si535 | 155.52 MHz | LVDS | 2.5V | ±20ppm |
| 535FB159M375DG | Skyworks Solutions Inc. | Si535 | 159.375 MHz | LVDS | 2.5V | ±20ppm |
| 535FB212M500DG | Skyworks Solutions Inc. | Si535 | 212.5 MHz | LVDS | 2.5V | ±20ppm |
| 535FB312M500DG | Skyworks Solutions Inc. | Si535 | 312.5 MHz | LVDS | 2.5V | ±20ppm |
| 535FC000172DG | Skyworks Solutions Inc. | Si535 | 166.6286 MHz | LVDS | 2.5V | ±7ppm |
| 535FC000175DG | Skyworks Solutions Inc. | Si535 | 167.3316 MHz | LVDS | 2.5V | ±7ppm |
| 535FC000305DG | Skyworks Solutions Inc. | Si535 | 156.2578 MHz | LVDS | 2.5V | ±7ppm |
| 535FC106M250DG | Skyworks Solutions Inc. | Si535 | 106.25 MHz | LVDS | 2.5V | ±7ppm |
| 535FC150M000DG | Skyworks Solutions Inc. | Si535 | 150 MHz | LVDS | 2.5V | ±7ppm |
| 535FC155M520DG | Skyworks Solutions Inc. | Si535 | 155.52 MHz | LVDS | 2.5V | ±7ppm |
| 535FC156M250DG | Skyworks Solutions Inc. | Si535 | 156.25 MHz | LVDS | 2.5V | ±7ppm |
| 535FC159M375DG | Skyworks Solutions Inc. | Si535 | 159.375 MHz | LVDS | 2.5V | ±7ppm |
| 535FC212M500DG | Skyworks Solutions Inc. | Si535 | 212.5 MHz | LVDS | 2.5V | ±7ppm |
| 535FC312M500DG | Skyworks Solutions Inc. | Si535 | 312.5 MHz | LVDS | 2.5V | ±7ppm |
| 535AB000335DGR | Skyworks Solutions Inc. | Si535 | 156.2539 MHz | LVPECL | 3.3V | ±20ppm |
| 535AB100M000DGR | Skyworks Solutions Inc. | Si535 | 100 MHz | LVPECL | 3.3V | ±20ppm |
| 535AB156M250DGR | Skyworks Solutions Inc. | Si535 | 156.25 MHz | LVPECL | 3.3V | ±20ppm |
| 535BB100M000DGR | Skyworks Solutions Inc. | Si535 | 100 MHz | LVDS | 3.3V | ±20ppm |
| 535BB125M000DGR | Skyworks Solutions Inc. | Si535 | 125 MHz | LVDS | 3.3V | ±20ppm |
| 535BB156M250DGR | Skyworks Solutions Inc. | Si535 | 156.25 MHz | LVDS | 3.3V | ±20ppm |
| 535EB100M000DGR | Skyworks Solutions Inc. | Si535 | 156.2539 MHz | LVPECL | 2.5V | ±20ppm |
| 535EB125M000DGR | Skyworks Solutions Inc. | Si535 | 125 MHz | LVPECL | 2.5V | ±20ppm |
| 535EB156M250DGR | Skyworks Solutions Inc. | Si535 | 156.25 MHz | LVPECL | 2.5V | ±20ppm |
| 535FB100M000DGR | Skyworks Solutions Inc. | Si535 | 156.2539 MHz | LVDS | 2.5V | ±20ppm |
| 535FB125M000DGR | Skyworks Solutions Inc. | Si535 | 125 MHz | LVDS | 2.5V | ±20ppm |
| 535FB156M250DGR | Skyworks Solutions Inc. | Si535 | 156.25 MHz | LVDS | 2.5V | ±20ppm |
| 535AB000335DG | Skyworks Solutions Inc. | Si535 | 156.2539 MHz | LVPECL | 3.3V | ±20ppm |
| 535AB100M000DG | Skyworks Solutions Inc. | Si535 | 100 MHz | LVPECL | 3.3V | ±20ppm |
| 535BB100M000DG | Skyworks Solutions Inc. | Si535 | 100 MHz | LVDS | 3.3V | ±20ppm |
| 535EB100M000DG | Skyworks Solutions Inc. | Si535 | 156.2539 MHz | LVPECL | 2.5V | ±20ppm |
| 535FB100M000DG | Skyworks Solutions Inc. | Si535 | 156.2539 MHz | LVDS | 2.5V | ±20ppm |
| 535AB000172DG | Skyworks Solutions Inc. | Si535 | 166.6286 MHz | LVPECL | 3.3V | ±20ppm |
| 535AB000175DG | Skyworks Solutions Inc. | Si535 | 167.3316 MHz | LVPECL | 3.3V | ±20ppm |
| 535AB000292DG | Skyworks Solutions Inc. | Si535 | 161.1328 MHz | LVPECL | 3.3V | ±20ppm |
| 535AB000305DG | Skyworks Solutions Inc. | Si535 | 156.2578 MHz | LVPECL | 3.3V | ±20ppm |
| 535AB106M250DG | Skyworks Solutions Inc. | Si535 | 106.25 MHz | LVPECL | 3.3V | ±20ppm |
| 535AB150M000DG | Skyworks Solutions Inc. | Si535 | 150 MHz | LVPECL | 3.3V | ±20ppm |
| 535AB155M520DG | Skyworks Solutions Inc. | Si535 | 155.52 MHz | LVPECL | 3.3V | ±20ppm |
| 535AB159M375DG | Skyworks Solutions Inc. | Si535 | 159.375 MHz | LVPECL | 3.3V | ±20ppm |
| 535AB212M500DG | Skyworks Solutions Inc. | Si535 | 212.5 MHz | LVPECL | 3.3V | ±20ppm |
| 535AC000172DG | Skyworks Solutions Inc. | Si535 | 166.6286 MHz | LVPECL | 3.3V | ±7ppm |
| 535AC000305DG | Skyworks Solutions Inc. | Si535 | 156.2578 MHz | LVPECL | 3.3V | ±7ppm |
| 535AC150M000DG | Skyworks Solutions Inc. | Si535 | 150 MHz | LVPECL | 3.3V | ±7ppm |
| 535AC159M375DG | Skyworks Solutions Inc. | Si535 | 159.375 MHz | LVPECL | 3.3V | ±7ppm |
| 535AC212M500DG | Skyworks Solutions Inc. | Si535 | 212.5 MHz | LVPECL | 3.3V | ±7ppm |
| 535AC312M500DG | Skyworks Solutions Inc. | Si535 | 312.5 MHz | LVPECL | 3.3V | ±7ppm |
| 535EB000172DG | Skyworks Solutions Inc. | Si535 | 166.6286 MHz | LVPECL | 2.5V | ±20ppm |
| 535EB000175DG | Skyworks Solutions Inc. | Si535 | 167.3316 MHz | LVPECL | 2.5V | ±20ppm |
| 535EB000292DG | Skyworks Solutions Inc. | Si535 | 161.1328 MHz | LVPECL | 2.5V | ±20ppm |
| 535EB000305DG | Skyworks Solutions Inc. | Si535 | 156.2578 MHz | LVPECL | 2.5V | ±20ppm |
| 535EB106M250DG | Skyworks Solutions Inc. | Si535 | 106.25 MHz | LVPECL | 2.5V | ±20ppm |
| 535EB150M000DG | Skyworks Solutions Inc. | Si535 | 150 MHz | LVPECL | 2.5V | ±20ppm |
| 535EB155M520DG | Skyworks Solutions Inc. | Si535 | 155.52 MHz | LVPECL | 2.5V | ±20ppm |
| 535EB159M375DG | Skyworks Solutions Inc. | Si535 | 159.375 MHz | LVPECL | 2.5V | ±20ppm |
| 535EB212M500DG | Skyworks Solutions Inc. | Si535 | 212.5 MHz | LVPECL | 2.5V | ±20ppm |
| 535EB312M500DG | Skyworks Solutions Inc. | Si535 | 312.5 MHz | LVPECL | 2.5V | ±20ppm |
| 535EC000172DG | Skyworks Solutions Inc. | Si535 | 166.6286 MHz | LVPECL | 2.5V | ±7ppm |
| 535EC000175DG | Skyworks Solutions Inc. | Si535 | 167.3316 MHz | LVPECL | 2.5V | ±7ppm |
| 535EC000292DG | Skyworks Solutions Inc. | Si535 | 161.1328 MHz | LVPECL | 2.5V | ±7ppm |
| 535EC000305DG | Skyworks Solutions Inc. | Si535 | 156.2578 MHz | LVPECL | 2.5V | ±7ppm |
| 535EC106M250DG | Skyworks Solutions Inc. | Si535 | 106.25 MHz | LVPECL | 2.5V | ±7ppm |
| 535EC125M000DG | Skyworks Solutions Inc. | Si535 | 125 MHz | LVPECL | 2.5V | ±7ppm |
| 535EC150M000DG | Skyworks Solutions Inc. | Si535 | 150 MHz | LVPECL | 2.5V | ±7ppm |
| 535EC155M520DG | Skyworks Solutions Inc. | Si535 | 155.52 MHz | LVPECL | 2.5V | ±7ppm |
| 535EC159M375DG | Skyworks Solutions Inc. | Si535 | 159.375 MHz | LVPECL | 2.5V | ±7ppm |
| 535EC212M500DG | Skyworks Solutions Inc. | Si535 | 212.5 MHz | LVPECL | 2.5V | ±7ppm |
| 535EC312M500DG | Skyworks Solutions Inc. | Si535 | 312.5 MHz | LVPECL | 2.5V | ±7ppm |
| 535AB125M000DG | Skyworks Solutions Inc. | Si535 | 125 MHz | LVPECL | 3.3V | ±20ppm |
| 535BB125M000DG | Skyworks Solutions Inc. | Si535 | 125 MHz | LVDS | 3.3V | ±20ppm |
| 535EB125M000DG | Skyworks Solutions Inc. | Si535 | 125 MHz | LVPECL | 2.5V | ±20ppm |
| 535EB156M250DG | Skyworks Solutions Inc. | Si535 | 156.25 MHz | LVPECL | 2.5V | ±20ppm |
| 535AB156M250DG | Skyworks Solutions Inc. | Si535 | 156.25 MHz | LVPECL | 3.3V | ±20ppm |
| 535AB000172DGR | Skyworks Solutions Inc. | Si535 | 166.6286 MHz | LVPECL | 3.3V | ±20ppm |
| 535AB000175DGR | Skyworks Solutions Inc. | Si535 | 167.3316 MHz | LVPECL | 3.3V | ±20ppm |
| 535AB000292DGR | Skyworks Solutions Inc. | Si535 | 161.1328 MHz | LVPECL | 3.3V | ±20ppm |
| 535AB000305DGR | Skyworks Solutions Inc. | Si535 | 156.2578 MHz | LVPECL | 3.3V | ±20ppm |
| 535AB106M250DGR | Skyworks Solutions Inc. | Si535 | 106.25 MHz | LVPECL | 3.3V | ±20ppm |
| 535AB150M000DGR | Skyworks Solutions Inc. | Si535 | 150 MHz | LVPECL | 3.3V | ±20ppm |
| 535AB155M520DGR | Skyworks Solutions Inc. | Si535 | 155.52 MHz | LVPECL | 3.3V | ±20ppm |
| 535AB159M375DGR | Skyworks Solutions Inc. | Si535 | 159.375 MHz | LVPECL | 3.3V | ±20ppm |
| 535AB212M500DGR | Skyworks Solutions Inc. | Si535 | 212.5 MHz | LVPECL | 3.3V | ±20ppm |
| 535AC000172DGR | Skyworks Solutions Inc. | Si535 | 166.6286 MHz | LVPECL | 3.3V | ±7ppm |
| 535AC000305DGR | Skyworks Solutions Inc. | Si535 | 156.2578 MHz | LVPECL | 3.3V | ±7ppm |
| 535AC150M000DGR | Skyworks Solutions Inc. | Si535 | 150 MHz | LVPECL | 3.3V | ±7ppm |
| 535AC159M375DGR | Skyworks Solutions Inc. | Si535 | 159.375 MHz | LVPECL | 3.3V | ±7ppm |
| 535AC212M500DGR | Skyworks Solutions Inc. | Si535 | 212.5 MHz | LVPECL | 3.3V | ±7ppm |
| 535AC312M500DGR | Skyworks Solutions Inc. | Si535 | 312.5 MHz | LVPECL | 3.3V | ±7ppm |
| 535EB000172DGR | Skyworks Solutions Inc. | Si535 | 166.6286 MHz | LVPECL | 2.5V | ±20ppm |
| 535EB000175DGR | Skyworks Solutions Inc. | Si535 | 167.3316 MHz | LVPECL | 2.5V | ±20ppm |
| 535EB000292DGR | Skyworks Solutions Inc. | Si535 | 161.1328 MHz | LVPECL | 2.5V | ±20ppm |
| 535EB000305DGR | Skyworks Solutions Inc. | Si535 | 156.2578 MHz | LVPECL | 2.5V | ±20ppm |
| 535EB106M250DGR | Skyworks Solutions Inc. | Si535 | 106.25 MHz | LVPECL | 2.5V | ±20ppm |
| 535EB150M000DGR | Skyworks Solutions Inc. | Si535 | 150 MHz | LVPECL | 2.5V | ±20ppm |
| 535EB155M520DGR | Skyworks Solutions Inc. | Si535 | 155.52 MHz | LVPECL | 2.5V | ±20ppm |
| 535EB159M375DGR | Skyworks Solutions Inc. | Si535 | 159.375 MHz | LVPECL | 2.5V | ±20ppm |
| 535EB212M500DGR | Skyworks Solutions Inc. | Si535 | 212.5 MHz | LVPECL | 2.5V | ±20ppm |
| 535EB312M500DGR | Skyworks Solutions Inc. | Si535 | 312.5 MHz | LVPECL | 2.5V | ±20ppm |
| 535EC000172DGR | Skyworks Solutions Inc. | Si535 | 166.6286 MHz | LVPECL | 2.5V | ±7ppm |
| 535EC000175DGR | Skyworks Solutions Inc. | Si535 | 167.3316 MHz | LVPECL | 2.5V | ±7ppm |
| 535EC000292DGR | Skyworks Solutions Inc. | Si535 | 161.1328 MHz | LVPECL | 2.5V | ±7ppm |
| 535EC000305DGR | Skyworks Solutions Inc. | Si535 | 156.2578 MHz | LVPECL | 2.5V | ±7ppm |
| 535EC106M250DGR | Skyworks Solutions Inc. | Si535 | 106.25 MHz | LVPECL | 2.5V | ±7ppm |
| 535EC125M000DGR | Skyworks Solutions Inc. | Si535 | 125 MHz | LVPECL | 2.5V | ±7ppm |
| 535EC150M000DGR | Skyworks Solutions Inc. | Si535 | 150 MHz | LVPECL | 2.5V | ±7ppm |
| 535EC155M520DGR | Skyworks Solutions Inc. | Si535 | 155.52 MHz | LVPECL | 2.5V | ±7ppm |
| 535EC159M375DGR | Skyworks Solutions Inc. | Si535 | 159.375 MHz | LVPECL | 2.5V | ±7ppm |
| 535EC212M500DGR | Skyworks Solutions Inc. | Si535 | 212.5 MHz | LVPECL | 2.5V | ±7ppm |
| 535EC312M500DGR | Skyworks Solutions Inc. | Si535 | 312.5 MHz | LVPECL | 2.5V | ±7ppm |
| 535AB312M500DGR | Skyworks Solutions Inc. | Si535 | 312.5 MHz | LVPECL | 3.3V | ±20ppm |
| 535BB312M500DGR | Skyworks Solutions Inc. | Si535 | 312.5 MHz | LVDS | 3.3V | ±20ppm |
| 535AB312M500DG | Skyworks Solutions Inc. | Si535 | 312.5 MHz | LVPECL | 3.3V | ±20ppm |
| 535BB312M500DG | Skyworks Solutions Inc. | Si535 | 312.5 MHz | LVDS | 3.3V | ±20ppm |
| 534BC002614DG | Skyworks Solutions Inc. | Si534 | 74 MHz | LVDS | 3.3V | ±7ppm |
| 534BC002614DGR | Skyworks Solutions Inc. | Si534 | 74 MHz | LVDS | 3.3V | ±7ppm |
| 535AC000175DGR | Skyworks Solutions Inc. | Si535 | 167.3316 MHz | LVPECL | 3.3V | ±7ppm |
| 535AC000292DGR | Skyworks Solutions Inc. | Si535 | 161.1328 MHz | LVPECL | 3.3V | ±7ppm |
| 535AC000335DGR | Skyworks Solutions Inc. | Si535 | 156.2539 MHz | LVPECL | 3.3V | ±7ppm |
| 535AC100M000DGR | Skyworks Solutions Inc. | Si535 | 100 MHz | LVPECL | 3.3V | ±7ppm |
| 535AC106M250DGR | Skyworks Solutions Inc. | Si535 | 106.25 MHz | LVPECL | 3.3V | ±7ppm |
| 535AC125M000DGR | Skyworks Solutions Inc. | Si535 | 125 MHz | LVPECL | 3.3V | ±7ppm |
| 535AC155M520DGR | Skyworks Solutions Inc. | Si535 | 155.52 MHz | LVPECL | 3.3V | ±7ppm |
| 535BC100M000DGR | Skyworks Solutions Inc. | Si535 | 156.2539 MHz | LVDS | 3.3V | ±7ppm |
| 535BC106M250DGR | Skyworks Solutions Inc. | Si535 | 106.25 MHz | LVDS | 3.3V | ±7ppm |
| 535BC125M000DGR | Skyworks Solutions Inc. | Si535 | 125 MHz | LVDS | 3.3V | ±7ppm |
| 535BC156M250DGR | Skyworks Solutions Inc. | Si535 | 156.25 MHz | LVDS | 3.3V | ±7ppm |
| 535EC100M000DGR | Skyworks Solutions Inc. | Si535 | 156.2539 MHz | LVPECL | 2.5V | ±7ppm |
| 535EC156M250DGR | Skyworks Solutions Inc. | Si535 | 156.25 MHz | LVPECL | 2.5V | ±7ppm |
| 535FC000292DGR | Skyworks Solutions Inc. | Si535 | 161.1328 MHz | LVDS | 2.5V | ±7ppm |
| 535FC000338DGR | Skyworks Solutions Inc. | Si535 | 156.2539 MHz | LVDS | 2.5V | ±7ppm |
| 535FC100M000DGR | Skyworks Solutions Inc. | Si535 | 100 MHz | LVDS | 2.5V | ±7ppm |
| 535FC125M000DGR | Skyworks Solutions Inc. | Si535 | 125 MHz | LVDS | 2.5V | ±7ppm |
| 535AC156M250DGR | Skyworks Solutions Inc. | Si535 | 156.25 MHz | LVPECL | 3.3V | ±7ppm |
| 535AC000175DG | Skyworks Solutions Inc. | Si535 | 167.3316 MHz | LVPECL | 3.3V | ±7ppm |
| 535AC000292DG | Skyworks Solutions Inc. | Si535 | 161.1328 MHz | LVPECL | 3.3V | ±7ppm |
| 535AC000335DG | Skyworks Solutions Inc. | Si535 | 156.2539 MHz | LVPECL | 3.3V | ±7ppm |
| 535AC125M000DG | Skyworks Solutions Inc. | Si535 | 125 MHz | LVPECL | 3.3V | ±7ppm |
| 535AC155M520DG | Skyworks Solutions Inc. | Si535 | 155.52 MHz | LVPECL | 3.3V | ±7ppm |
| 535BC106M250DG | Skyworks Solutions Inc. | Si535 | 106.25 MHz | LVDS | 3.3V | ±7ppm |
| 535BC125M000DG | Skyworks Solutions Inc. | Si535 | 125 MHz | LVDS | 3.3V | ±7ppm |
| 535BC156M250DG | Skyworks Solutions Inc. | Si535 | 156.25 MHz | LVDS | 3.3V | ±7ppm |
| 535EC100M000DG | Skyworks Solutions Inc. | Si535 | 156.2539 MHz | LVPECL | 2.5V | ±7ppm |
| 535EC156M250DG | Skyworks Solutions Inc. | Si535 | 156.25 MHz | LVPECL | 2.5V | ±7ppm |
| 535FC000292DG | Skyworks Solutions Inc. | Si535 | 161.1328 MHz | LVDS | 2.5V | ±7ppm |
| 535FC000338DG | Skyworks Solutions Inc. | Si535 | 156.2539 MHz | LVDS | 2.5V | ±7ppm |
| 535FC100M000DG | Skyworks Solutions Inc. | Si535 | 100 MHz | LVDS | 2.5V | ±7ppm |
| 535FC125M000DG | Skyworks Solutions Inc. | Si535 | 125 MHz | LVDS | 2.5V | ±7ppm |
| 535BC212M500DGR | Skyworks Solutions Inc. | Si535 | 212.5 MHz | LVDS | 3.3V | ±7ppm |
| 535BC212M500DG | Skyworks Solutions Inc. | Si535 | 212.5 MHz | LVDS | 3.3V | ±7ppm |
.jpg)
.jpg)
SHENZHEN YIJIN ELECTRONICS CO;LTD
電話：0755-27876565
手機：18924600166
QQ：857950243
郵箱：yijindz@163.com
網站：http://www.sdyoujian.cn
地址：廣東省深圳市寶安區新安107國道旁
銷售代表
.jpg)
