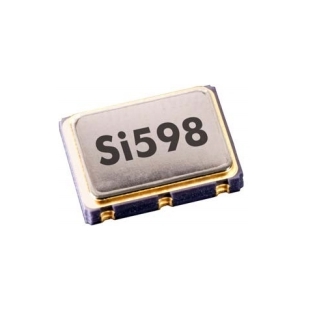

Skyworks有源晶振,598ACA000105DG,6G無線通信晶振
- 頻率：622.08MHz
- 尺寸：7.0×5.0mm
- 應 用： Skyworks晶振,Si598有源晶振采用Skyworks Solutions先進的DSPLL?電路,在任何頻率下提供低抖動時鐘,它們是用戶可編程到從10到810兆赫的任何輸出頻率,分辨率為28萬億分之一(PPT),該器件通過2引腳I2C兼容串行接口編程,寬...
-
-
Skyworks有源晶振,598ACA000105DG,6G無線通信晶振,Skyworks晶振,Si598有源晶振采用Skyworks Solutions先進的DSPLL®電路,在任何頻率下提供低抖動時鐘,它們是用戶可編程到從10到810兆赫的任何輸出頻率,分辨率為28萬億分之一(PPT),該器件通過2引腳I2C兼容串行接口編程,寬頻率范圍和超精細的編程分辨率使這些器件非常適合需要在線動態頻率調節或非整數相關速率的多速率操作的應用,7050mm晶振,LV-PECL晶振,差分晶振,石英晶體振蕩器,6G無線通信晶振,多速率鎖相環晶振,多速率參考時鐘晶振.

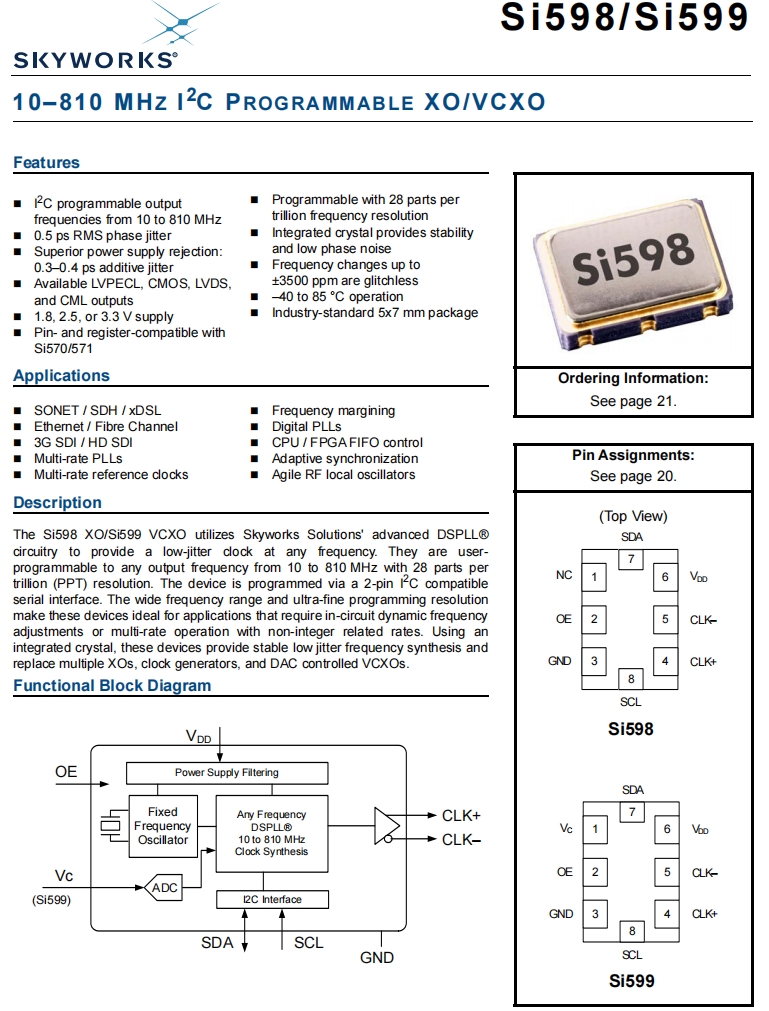

Skyworks有源晶振,598ACA000105DG,6G無線通信晶振特點：
•I2C可編程輸出頻率從10MHz到810MHz
•0.5ps RMS相位抖動
•優越的電源拒絕能力:0.3-0.4 ps附加抖動
•引腳和寄存器兼容Si570/571
•可編程的28萬億分之一的頻率分辨率
•集成晶體提供穩定性和低相位噪聲
•頻率變化到±3500ppm無故障
•具備CMOS, LVPECL，LVDS和CML輸出
•3.3, 2.5和1.8 V電源選項
•行業標準的5 × 7mm封裝和引腳
•工作溫度-40~85°C
Skyworks有源晶振,598ACA000105DG,6G無線通信晶振規格表
| 項目 | 符號 | 規格說明 | 條件 |
| 額定頻率 | f_nom | 622.08MHz | 請聯系我們以便獲取其它可用頻率的相關信息 |
| 電源電壓 | Vcc | 3.3V | |
| 儲存溫度 | T_stg | -55℃~+125℃ | 裸存 |
| 工作溫度 | T_use | -40℃~ +85℃ | |
| 頻率穩定性 | f_tol | ±20 ppm | +25℃,超出標準的規格說明請聯系我們 |
| 電源電流 | IDD | 130mA Max |
LVPECL
|
| 對稱性（占空比） | SYM | 48%~52% | 在輸出交叉點 |
| 輸出電壓 | VOD | 1.9VPP Max |
LVPECL
|
| VO | 1.25V Max | ||
| 輸入電壓 | VIH | 0.75XVDD Min |
|
| VIL | 0.5V Max | ||
| 上升下降時間 | tr/tf | 350ps Max |
LVPECL
|
| 起始時間 | t str | 10ms Max | |
| 相位抖動 | tpj | 1ps Max |
Differential Formats
|
.jpg)

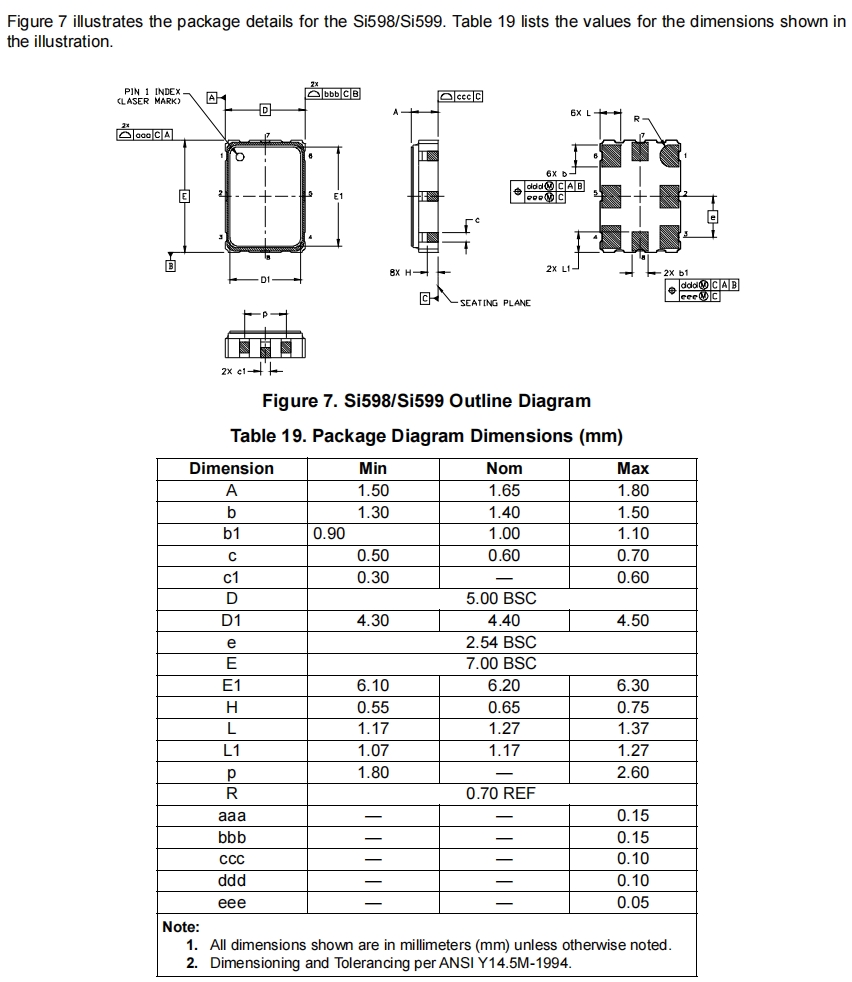

Skyworks有源晶振,598ACA000105DG,6G無線通信晶振尺寸圖
| 原廠編碼 | 品牌 | 型號 | 頻率 | 輸出 | 電壓 | 頻率穩定性 |
| 598ACA000105DG | Skyworks Solutions Inc. | Si598 | 622.08 MHz | LVPECL | 3.3V | ±20ppm |
| 598BCA001653DG | Skyworks Solutions Inc. | Si598 | 90 MHz | LVDS | 3.3V | ±20ppm |
| 598BCA000420DG | Skyworks Solutions Inc. | Si598 | 644.53125 MHz | LVDS | 3.3V | ±20ppm |
| 598BCA000420DGR | Skyworks Solutions Inc. | Si598 | 644.53125 MHz | LVDS | 3.3V | ±20ppm |
| 598AAC000112DGR | Skyworks Solutions Inc. | Si598 | 10 MHz | LVPECL | 3.3V | ±50ppm |
| 598BAC000102DGR | Skyworks Solutions Inc. | Si598 | 100 MHz | LVDS | 3.3V | ±50ppm |
| 598BAC000121DGR | Skyworks Solutions Inc. | Si598 | 100 MHz | LVDS | 3.3V | ±50ppm |
| 598FAC000112DGR | Skyworks Solutions Inc. | Si598 | 10 MHz | LVDS | 2.5V | ±50ppm |
| 598FAC001431DGR | Skyworks Solutions Inc. | Si598 | 13.5 MHz | LVDS | 2.5V | ±50ppm |
| 598FAC001445DGR | Skyworks Solutions Inc. | Si598 | 13.5 MHz | LVDS | 2.5V | ±50ppm |
| 598BAC000112DGR | Skyworks Solutions Inc. | Si598 | 10 MHz | LVDS | 3.3V | ±50ppm |
| 598BAC000159DGR | Skyworks Solutions Inc. | Si598 | 148.5 MHz | LVDS | 3.3V | ±50ppm |
| 598FAC000305DGR | Skyworks Solutions Inc. | Si598 | 64 MHz | LVDS | 2.5V | ±50ppm |
| 598BAC000305DGR | Skyworks Solutions Inc. | Si598 | 64 MHz | LVDS | 3.3V | ±50ppm |
| 598BAC002153DGR | Skyworks Solutions Inc. | Si598 | 40.96 MHz | LVDS | 3.3V | ±50ppm |
| 598ABC000112DGR | Skyworks Solutions Inc. | Si598 | 10 MHz | LVPECL | 3.3V | ±25ppm |
| 598BCC000115DGR | Skyworks Solutions Inc. | Si598 | 125 MHz | LVDS | 3.3V | ±20ppm |
| 598ABB000118DGR | Skyworks Solutions Inc. | Si598 | 156.25 MHz | LVPECL | 3.3V | ±25ppm |
| 598ABB000126DGR | Skyworks Solutions Inc. | Si598 | 200 MHz | LVPECL | 3.3V | ±25ppm |
| 598BBB000118DGR | Skyworks Solutions Inc. | Si598 | 156.25 MHz | LVDS | 3.3V | ±25ppm |
| 598MBB000118DGR | Skyworks Solutions Inc. | Si598 | 156.25 MHz | LVPECL | 3.3V | ±25ppm |
| 598AAB000112DGR | Skyworks Solutions Inc. | Si598 | 10 MHz | LVPECL | 3.3V | ±50ppm |
| 598AAB000121DGR | Skyworks Solutions Inc. | Si598 | 100 MHz | LVPECL | 3.3V | ±50ppm |
| 598BAB000107DGR | Skyworks Solutions Inc. | Si598 | 10 MHz | LVDS | 3.3V | ±50ppm |
| 598BAB000544DGR | Skyworks Solutions Inc. | Si598 | 156.25 MHz | LVDS | 3.3V | ±50ppm |
| 598MAB000118DGR | Skyworks Solutions Inc. | Si598 | 156.25 MHz | LVPECL | 3.3V | ±50ppm |
| 598ABC000112DG | Skyworks Solutions Inc. | Si598 | 10 MHz | LVPECL | 3.3V | ±25ppm |
| 598AAC000112DG | Skyworks Solutions Inc. | Si598 | 10 MHz | LVPECL | 3.3V | ±50ppm |
| 598BAC000102DG | Skyworks Solutions Inc. | Si598 | 100 MHz | LVDS | 3.3V | ±50ppm |
| 598BAC000121DG | Skyworks Solutions Inc. | Si598 | 100 MHz | LVDS | 3.3V | ±50ppm |
| 598FAC000112DG | Skyworks Solutions Inc. | Si598 | 10 MHz | LVDS | 2.5V | ±50ppm |
| 598FAC001431DG | Skyworks Solutions Inc. | Si598 | 13.5 MHz | LVDS | 2.5V | ±50ppm |
| 598FAC001445DG | Skyworks Solutions Inc. | Si598 | 13.5 MHz | LVDS | 2.5V | ±50ppm |
| 598BAC000112DG | Skyworks Solutions Inc. | Si598 | 10 MHz | LVDS | 3.3V | ±50ppm |
| 598BAC000159DG | Skyworks Solutions Inc. | Si598 | 148.5 MHz | LVDS | 3.3V | ±50ppm |
| 598FAC000305DG | Skyworks Solutions Inc. | Si598 | 64 MHz | LVDS | 2.5V | ±50ppm |
| 598BAC002153DG | Skyworks Solutions Inc. | Si598 | 40.96 MHz | LVDS | 3.3V | ±50ppm |
| 598BAC000305DG | Skyworks Solutions Inc. | Si598 | 64 MHz | LVDS | 3.3V | ±50ppm |
| 598BCC000115DG | Skyworks Solutions Inc. | Si598 | 125 MHz | LVDS | 3.3V | ±20ppm |
| 598ABB000118DG | Skyworks Solutions Inc. | Si598 | 156.25 MHz | LVPECL | 3.3V | ±25ppm |
| 598ABB000126DG | Skyworks Solutions Inc. | Si598 | 200 MHz | LVPECL | 3.3V | ±25ppm |
| 598BBB000118DG | Skyworks Solutions Inc. | Si598 | 156.25 MHz | LVDS | 3.3V | ±25ppm |
| 598MBB000118DG | Skyworks Solutions Inc. | Si598 | 156.25 MHz | LVPECL | 3.3V | ±25ppm |
| 598AAB000112DG | Skyworks Solutions Inc. | Si598 | 10 MHz | LVPECL | 3.3V | ±50ppm |
| 598AAB000121DG | Skyworks Solutions Inc. | Si598 | 100 MHz | LVPECL | 3.3V | ±50ppm |
| 598BAB000107DG | Skyworks Solutions Inc. | Si598 | 10 MHz | LVDS | 3.3V | ±50ppm |
| 598BAB000544DG | Skyworks Solutions Inc. | Si598 | 156.25 MHz | LVDS | 3.3V | ±50ppm |
| 598MAB000118DG | Skyworks Solutions Inc. | Si598 | 156.25 MHz | LVPECL | 3.3V | ±50ppm |
| 598BCB000126DG | Skyworks Solutions Inc. | Si598 | 200 MHz | LVDS | 3.3V | ±20ppm |
| 598NCB000126DG | Skyworks Solutions Inc. | Si598 | 200 MHz | LVDS | 3.3V | ±20ppm |
| 598BBC001741DGR | Skyworks Solutions Inc. | Si598 | 70.656 MHz | LVDS | 3.3V | ±25ppm |
| 598NBC000159DGR | Skyworks Solutions Inc. | Si598 | 148.5 MHz | LVDS | 3.3V | ±25ppm |
| 598BBC000482DGR | Skyworks Solutions Inc. | Si598 | 148.35 MHz | LVDS | 3.3V | ±25ppm |
| 598BCB000126DGR | Skyworks Solutions Inc. | Si598 | 200 MHz | LVDS | 3.3V | ±20ppm |
| 598NCB000126DGR | Skyworks Solutions Inc. | Si598 | 200 MHz | LVDS | 3.3V | ±20ppm |
| 598BBC001741DG | Skyworks Solutions Inc. | Si598 | 70.656 MHz | LVDS | 3.3V | ±25ppm |
| 598NBC000159DG | Skyworks Solutions Inc. | Si598 | 148.5 MHz | LVDS | 3.3V | ±25ppm |
| 598BBC000482DG | Skyworks Solutions Inc. | Si598 | 148.35 MHz | LVDS | 3.3V | ±25ppm |
| 598ABB000159DG | Skyworks Solutions Inc. | Si598 | 148.5 MHz | LVPECL | 3.3V | ±25ppm |
| 598ABB000252DG | Skyworks Solutions Inc. | Si598 | 187.5 MHz | LVPECL | 3.3V | ±25ppm |
| 598ABB000353DG | Skyworks Solutions Inc. | Si598 | 200 MHz | LVPECL | 3.3V | ±25ppm |
| 598ABB000771DG | Skyworks Solutions Inc. | Si598 | 156.25 MHz | LVPECL | 3.3V | ±25ppm |
| 598BBB000112DG | Skyworks Solutions Inc. | Si598 | 10 MHz | LVDS | 3.3V | ±25ppm |
| 598BBB000159DG | Skyworks Solutions Inc. | Si598 | 148.5 MHz | LVDS | 3.3V | ±25ppm |
| 598BBB000252DG | Skyworks Solutions Inc. | Si598 | 187.5 MHz | LVDS | 3.3V | ±25ppm |
| 598EBB000772DG | Skyworks Solutions Inc. | Si598 | 156.25 MHz | LVPECL | 2.5V | ±25ppm |
| 598FBB000115DG | Skyworks Solutions Inc. | Si598 | 125 MHz | LVDS | 2.5V | ±25ppm |
| 598MBB000112DG | Skyworks Solutions Inc. | Si598 | 10 MHz | LVPECL | 3.3V | ±25ppm |
| 598MBB000262DG | Skyworks Solutions Inc. | Si598 | 70 MHz | LVPECL | 3.3V | ±25ppm |
| 598ACC000107DGR | Skyworks Solutions Inc. | Si598 | 10 MHz | LVPECL | 3.3V | ±20ppm |
| 598ACC000118DGR | Skyworks Solutions Inc. | Si598 | 156.25 MHz | LVPECL | 3.3V | ±20ppm |
| 598ACC000199DGR | Skyworks Solutions Inc. | Si598 | 40 MHz | LVPECL | 3.3V | ±20ppm |
| 598BCC000112DGR | Skyworks Solutions Inc. | Si598 | 10 MHz | LVDS | 3.3V | ±20ppm |
| 598BCC000118DGR | Skyworks Solutions Inc. | Si598 | 156.25 MHz | LVDS | 3.3V | ±20ppm |
| 598BCC000121DGR | Skyworks Solutions Inc. | Si598 | 100 MHz | LVDS | 3.3V | ±20ppm |
| 598BCC000199DGR | Skyworks Solutions Inc. | Si598 | 40 MHz | LVDS | 3.3V | ±20ppm |
| 598BCC000320DGR | Skyworks Solutions Inc. | Si598 | 65 MHz | LVDS | 3.3V | ±20ppm |
| 598NCC000159DGR | Skyworks Solutions Inc. | Si598 | 148.5 MHz | LVDS | 3.3V | ±20ppm |
| 598ABB000159DGR | Skyworks Solutions Inc. | Si598 | 148.5 MHz | LVPECL | 3.3V | ±25ppm |
| 598ABB000252DGR | Skyworks Solutions Inc. | Si598 | 187.5 MHz | LVPECL | 3.3V | ±25ppm |
| 598ABB000353DGR | Skyworks Solutions Inc. | Si598 | 200 MHz | LVPECL | 3.3V | ±25ppm |
| 598ABB000771DGR | Skyworks Solutions Inc. | Si598 | 156.25 MHz | LVPECL | 3.3V | ±25ppm |
| 598BBB000112DGR | Skyworks Solutions Inc. | Si598 | 10 MHz | LVDS | 3.3V | ±25ppm |
| 598BBB000159DGR | Skyworks Solutions Inc. | Si598 | 148.5 MHz | LVDS | 3.3V | ±25ppm |
| 598BBB000252DGR | Skyworks Solutions Inc. | Si598 | 187.5 MHz | LVDS | 3.3V | ±25ppm |
| 598EBB000772DGR | Skyworks Solutions Inc. | Si598 | 156.25 MHz | LVPECL | 2.5V | ±25ppm |
| 598FBB000115DGR | Skyworks Solutions Inc. | Si598 | 125 MHz | LVDS | 2.5V | ±25ppm |
| 598MBB000112DGR | Skyworks Solutions Inc. | Si598 | 10 MHz | LVPECL | 3.3V | ±25ppm |
| 598MBB000262DGR | Skyworks Solutions Inc. | Si598 | 70 MHz | LVPECL | 3.3V | ±25ppm |
| 598ABA000179DGR | Skyworks Solutions Inc. | Si598 | 312.5 MHz | LVPECL | 3.3V | ±25ppm |
| 598ABA000713DGR | Skyworks Solutions Inc. | Si598 | 644 MHz | LVPECL | 3.3V | ±25ppm |
| 598ABA001306DGR | Skyworks Solutions Inc. | Si598 | 10 MHz | LVPECL | 3.3V | ±25ppm |
| 598BBA001140DGR | Skyworks Solutions Inc. | Si598 | 156.25 MHz | LVDS | 3.3V | ±25ppm |
| 598BBA001141DGR | Skyworks Solutions Inc. | Si598 | 156.25 MHz | LVDS | 3.3V | ±25ppm |
| 598BBA001681DGR | Skyworks Solutions Inc. | Si598 | 12 MHz | LVDS | 3.3V | ±25ppm |
| 598FBA000164DGR | Skyworks Solutions Inc. | Si598 | 400 MHz | LVDS | 2.5V | ±25ppm |
| 598AAA000107DGR | Skyworks Solutions Inc. | Si598 | 10 MHz | LVPECL | 3.3V | ±50ppm |
| 598AAA000112DGR | Skyworks Solutions Inc. | Si598 | 10 MHz | LVPECL | 3.3V | ±50ppm |
| 598BAA000360DGR | Skyworks Solutions Inc. | Si598 | 148.5 MHz | LVDS | 3.3V | ±50ppm |
| 598EAA000107DGR | Skyworks Solutions Inc. | Si598 | 10 MHz | LVPECL | 2.5V | ±50ppm |
| 598FAA000112DGR | Skyworks Solutions Inc. | Si598 | 10 MHz | LVDS | 2.5V | ±50ppm |
| 598FAA000476DGR | Skyworks Solutions Inc. | Si598 | 322.265625 MHz | LVDS | 2.5V | ±50ppm |
| 598FAA001869DGR | Skyworks Solutions Inc. | Si598 | 300 MHz | LVDS | 2.5V | ±50ppm |
| 598FAA001870DGR | Skyworks Solutions Inc. | Si598 | 300 MHz | LVDS | 2.5V | ±50ppm |
| 598AAA000118DGR | Skyworks Solutions Inc. | Si598 | 156.25 MHz | LVPECL | 3.3V | ±50ppm |
| 598AAA002089DGR | Skyworks Solutions Inc. | Si598 | 15.437823 MHz | LVPECL | 3.3V | ±50ppm |
| 598BAA000112DGR | Skyworks Solutions Inc. | Si598 | 10 MHz | LVDS | 3.3V | ±50ppm |
| 598FAA000115DGR | Skyworks Solutions Inc. | Si598 | 125 MHz | LVDS | 2.5V | ±50ppm |
| 598FAA002037DGR | Skyworks Solutions Inc. | Si598 | 138.5 MHz | LVDS | 2.5V | ±50ppm |
| 598SAA000136DGR | Skyworks Solutions Inc. | Si598 | 160 MHz | LVDS | 2.5V | ±50ppm |
| 598BAA002358DGR | Skyworks Solutions Inc. | Si598 | 266.5 MHz | LVDS | 3.3V | ±50ppm |
| 598SAA000112DGR | Skyworks Solutions Inc. | Si598 | 10 MHz | LVDS | 2.5V | ±50ppm |
| 598ACC000107DG | Skyworks Solutions Inc. | Si598 | 10 MHz | LVPECL | 3.3V | ±20ppm |
| 598ACC000118DG | Skyworks Solutions Inc. | Si598 | 156.25 MHz | LVPECL | 3.3V | ±20ppm |
| 598ACC000199DG | Skyworks Solutions Inc. | Si598 | 40 MHz | LVPECL | 3.3V | ±20ppm |
| 598BCC000112DG | Skyworks Solutions Inc. | Si598 | 10 MHz | LVDS | 3.3V | ±20ppm |
| 598BCC000118DG | Skyworks Solutions Inc. | Si598 | 156.25 MHz | LVDS | 3.3V | ±20ppm |
| 598BCC000121DG | Skyworks Solutions Inc. | Si598 | 100 MHz | LVDS | 3.3V | ±20ppm |
| 598BCC000199DG | Skyworks Solutions Inc. | Si598 | 40 MHz | LVDS | 3.3V | ±20ppm |
| 598BCC000320DG | Skyworks Solutions Inc. | Si598 | 65 MHz | LVDS | 3.3V | ±20ppm |
| 598NCC000159DG | Skyworks Solutions Inc. | Si598 | 148.5 MHz | LVDS | 3.3V | ±20ppm |
| 598ACB000106DG | Skyworks Solutions Inc. | Si598 | 155.52 MHz | LVPECL | 3.3V | ±20ppm |
| 598ACB000107DG | Skyworks Solutions Inc. | Si598 | 10 MHz | LVPECL | 3.3V | ±20ppm |
| 598BCA000118DG | Skyworks Solutions Inc. | Si598 | 156.25 MHz | LVDS | 3.3V | ±20ppm |
| 598BCB000107DG | Skyworks Solutions Inc. | Si598 | 10 MHz | LVDS | 3.3V | ±20ppm |
| 598FCB000107DG | Skyworks Solutions Inc. | Si598 | 10 MHz | LVDS | 2.5V | ±20ppm |
| 598FCB000815DG | Skyworks Solutions Inc. | Si598 | 155.52 MHz | LVDS | 2.5V | ±20ppm |
| 598MCB000107DG | Skyworks Solutions Inc. | Si598 | 10 MHz | LVPECL | 3.3V | ±20ppm |
| 598MCB000112DG | Skyworks Solutions Inc. | Si598 | 10 MHz | LVPECL | 3.3V | ±20ppm |
| 598MCB000707DG | Skyworks Solutions Inc. | Si598 | 164 MHz | LVPECL | 3.3V | ±20ppm |
| 598BCB000121DG | Skyworks Solutions Inc. | Si598 | 100 MHz | LVDS | 3.3V | ±20ppm |
| 598FCB000290DG | Skyworks Solutions Inc. | Si598 | 250 MHz | LVDS | 2.5V | ±20ppm |
| 598FCB000126DG | Skyworks Solutions Inc. | Si598 | 200 MHz | LVDS | 2.5V | ±20ppm |
| 598AAA000107DG | Skyworks Solutions Inc. | Si598 | 10 MHz | LVPECL | 3.3V | ±50ppm |
| 598AAA000112DG | Skyworks Solutions Inc. | Si598 | 10 MHz | LVPECL | 3.3V | ±50ppm |
| 598BAA000360DG | Skyworks Solutions Inc. | Si598 | 148.5 MHz | LVDS | 3.3V | ±50ppm |
| 598EAA000107DG | Skyworks Solutions Inc. | Si598 | 10 MHz | LVPECL | 2.5V | ±50ppm |
| 598FAA000112DG | Skyworks Solutions Inc. | Si598 | 10 MHz | LVDS | 2.5V | ±50ppm |
| 598FAA000476DG | Skyworks Solutions Inc. | Si598 | 322.265625 MHz | LVDS | 2.5V | ±50ppm |
| 598FAA001869DG | Skyworks Solutions Inc. | Si598 | 300 MHz | LVDS | 2.5V | ±50ppm |
| 598FAA001870DG | Skyworks Solutions Inc. | Si598 | 300 MHz | LVDS | 2.5V | ±50ppm |
| 598AAA000118DG | Skyworks Solutions Inc. | Si598 | 156.25 MHz | LVPECL | 3.3V | ±50ppm |
| 598AAA002089DG | Skyworks Solutions Inc. | Si598 | 15.437823 MHz | LVPECL | 3.3V | ±50ppm |
| 598BAA000112DG | Skyworks Solutions Inc. | Si598 | 10 MHz | LVDS | 3.3V | ±50ppm |
| 598FAA000115DG | Skyworks Solutions Inc. | Si598 | 125 MHz | LVDS | 2.5V | ±50ppm |
| 598FAA002037DG | Skyworks Solutions Inc. | Si598 | 138.5 MHz | LVDS | 2.5V | ±50ppm |
| 598BAA002358DG | Skyworks Solutions Inc. | Si598 | 266.5 MHz | LVDS | 3.3V | ±50ppm |
| 598SAA000136DG | Skyworks Solutions Inc. | Si598 | 160 MHz | LVDS | 2.5V | ±50ppm |
| 598SAA000112DG | Skyworks Solutions Inc. | Si598 | 10 MHz | LVDS | 2.5V | ±50ppm |
| 598ACB000106DGR | Skyworks Solutions Inc. | Si598 | 155.52 MHz | LVPECL | 3.3V | ±20ppm |
| 598ACB000107DGR | Skyworks Solutions Inc. | Si598 | 10 MHz | LVPECL | 3.3V | ±20ppm |
| 598BCA000118DGR | Skyworks Solutions Inc. | Si598 | 156.25 MHz | LVDS | 3.3V | ±20ppm |
| 598BCB000107DGR | Skyworks Solutions Inc. | Si598 | 10 MHz | LVDS | 3.3V | ±20ppm |
| 598FCB000107DGR | Skyworks Solutions Inc. | Si598 | 10 MHz | LVDS | 2.5V | ±20ppm |
| 598FCB000815DGR | Skyworks Solutions Inc. | Si598 | 155.52 MHz | LVDS | 2.5V | ±20ppm |
| 598MCB000107DGR | Skyworks Solutions Inc. | Si598 | 10 MHz | LVPECL | 3.3V | ±20ppm |
| 598MCB000112DGR | Skyworks Solutions Inc. | Si598 | 10 MHz | LVPECL | 3.3V | ±20ppm |
| 598MCB000707DGR | Skyworks Solutions Inc. | Si598 | 164 MHz | LVPECL | 3.3V | ±20ppm |
| 598BCB000121DGR | Skyworks Solutions Inc. | Si598 | 100 MHz | LVDS | 3.3V | ±20ppm |
| 598FCB000290DGR | Skyworks Solutions Inc. | Si598 | 250 MHz | LVDS | 2.5V | ±20ppm |
| 598FCB000126DGR | Skyworks Solutions Inc. | Si598 | 200 MHz | LVDS | 2.5V | ±20ppm |
| 598ABA000179DG | Skyworks Solutions Inc. | Si598 | 312.5 MHz | LVPECL | 3.3V | ±25ppm |
| 598ABA000713DG | Skyworks Solutions Inc. | Si598 | 644 MHz | LVPECL | 3.3V | ±25ppm |
| 598ABA001306DG | Skyworks Solutions Inc. | Si598 | 10 MHz | LVPECL | 3.3V | ±25ppm |
| 598BBA001140DG | Skyworks Solutions Inc. | Si598 | 156.25 MHz | LVDS | 3.3V | ±25ppm |
| 598BBA001141DG | Skyworks Solutions Inc. | Si598 | 156.25 MHz | LVDS | 3.3V | ±25ppm |
| 598BBA001681DG | Skyworks Solutions Inc. | Si598 | 12 MHz | LVDS | 3.3V | ±25ppm |
| 598FBA000164DG | Skyworks Solutions Inc. | Si598 | 400 MHz | LVDS | 2.5V | ±25ppm |
| 598BBA000126DG | Skyworks Solutions Inc. | Si598 | 200 MHz | LVDS | 3.3V | ±25ppm |
| 598FCA000164DG | Skyworks Solutions Inc. | Si598 | 400 MHz | LVDS | 2.5V | ±20ppm |
| 598FCA000179DG | Skyworks Solutions Inc. | Si598 | 312.5 MHz | LVDS | 2.5V | ±20ppm |
| 598FCA000195DG | Skyworks Solutions Inc. | Si598 | 250 MHz | LVDS | 2.5V | ±20ppm |
| 598FCA001043DG | Skyworks Solutions Inc. | Si598 | 645 MHz | LVDS | 2.5V | ±20ppm |
| 598FCA001300DG | Skyworks Solutions Inc. | Si598 | 402.83203 MHz | LVDS | 2.5V | ±20ppm |
| 598MCA001504DG | Skyworks Solutions Inc. | Si598 | 535 MHz | LVPECL | 3.3V | ±20ppm |
| 598MCA001505DG | Skyworks Solutions Inc. | Si598 | 535 MHz | LVPECL | 3.3V | ±20ppm |
| 598RCA000118DG | Skyworks Solutions Inc. | Si598 | 156.25 MHz | LVPECL | 2.5V | ±20ppm |
| 598SCA000126DG | Skyworks Solutions Inc. | Si598 | 200 MHz | LVDS | 2.5V | ±20ppm |
| 598SCA000353DG | Skyworks Solutions Inc. | Si598 | 200 MHz | LVDS | 2.5V | ±20ppm |
| 598SCA000521DG | Skyworks Solutions Inc. | Si598 | 156.25 MHz | LVDS | 2.5V | ±20ppm |
| 598SCA000771DG | Skyworks Solutions Inc. | Si598 | 156.25 MHz | LVDS | 2.5V | ±20ppm |
| 598SCA001392DG | Skyworks Solutions Inc. | Si598 | 161.132812 MHz | LVDS | 2.5V | ±20ppm |
| 598SCA001393DG | Skyworks Solutions Inc. | Si598 | 161.132812 MHz | LVDS | 2.5V | ±20ppm |
| 598ACA000159DG | Skyworks Solutions Inc. | Si598 | 148.5 MHz | LVPECL | 3.3V | ±20ppm |
| 598BCA000177DG | Skyworks Solutions Inc. | Si598 | 297 MHz | LVDS | 3.3V | ±20ppm |
| 598BCA001974DG | Skyworks Solutions Inc. | Si598 | 161.133 MHz | LVDS | 3.3V | ±20ppm |
| 598FCA000504DG | Skyworks Solutions Inc. | Si598 | 48 MHz | LVDS | 2.5V | ±20ppm |
| 598SCA000112DG | Skyworks Solutions Inc. | Si598 | 10 MHz | LVDS | 2.5V | ±20ppm |
| 598BCA001741DG | Skyworks Solutions Inc. | Si598 | 70.656 MHz | LVDS | 3.3V | ±20ppm |
| 598FCA000290DG | Skyworks Solutions Inc. | Si598 | 250 MHz | LVDS | 2.5V | ±20ppm |
| 598BCA000126DG | Skyworks Solutions Inc. | Si598 | 200 MHz | LVDS | 3.3V | ±20ppm |
| 598BCA000107DG | Skyworks Solutions Inc. | Si598 | 10 MHz | LVDS | 3.3V | ±20ppm |
| 598BCA000121DG | Skyworks Solutions Inc. | Si598 | 100 MHz | LVDS | 3.3V | ±20ppm |
| 598FCA001699DG | Skyworks Solutions Inc. | Si598 | 100 MHz | LVDS | 2.5V | ±20ppm |
| 598BCA000504DG | Skyworks Solutions Inc. | Si598 | 48 MHz | LVDS | 3.3V | ±20ppm |
| 598ABA000133DG | Skyworks Solutions Inc. | Si598 | 500 MHz | LVPECL | 3.3V | ±25ppm |
| 598ABA000870DG | Skyworks Solutions Inc. | Si598 | 533.333333 MHz | LVPECL | 3.3V | ±25ppm |
| 598BBA000107DG | Skyworks Solutions Inc. | Si598 | 10 MHz | LVDS | 3.3V | ±25ppm |
| 598BBA000112DG | Skyworks Solutions Inc. | Si598 | 10 MHz | LVDS | 3.3V | ±25ppm |
| 598BBA000133DG | Skyworks Solutions Inc. | Si598 | 500 MHz | LVDS | 3.3V | ±25ppm |
| 598BBA000159DG | Skyworks Solutions Inc. | Si598 | 148.5 MHz | LVDS | 3.3V | ±25ppm |
| 598BBA000870DG | Skyworks Solutions Inc. | Si598 | 533.333333 MHz | LVDS | 3.3V | ±25ppm |
| 598BBA001654DG | Skyworks Solutions Inc. | Si598 | 300.12 MHz | LVDS | 3.3V | ±25ppm |
| 598BBA001655DG | Skyworks Solutions Inc. | Si598 | 300.12 MHz | LVDS | 3.3V | ±25ppm |
| 598BBA001682DG | Skyworks Solutions Inc. | Si598 | 216 MHz | LVDS | 3.3V | ±25ppm |
| 598EBA000374DG | Skyworks Solutions Inc. | Si598 | 200 MHz | LVPECL | 2.5V | ±25ppm |
| 598EBA000870DG | Skyworks Solutions Inc. | Si598 | 533.333333 MHz | LVPECL | 2.5V | ±25ppm |
| 598FBA000121DG | Skyworks Solutions Inc. | Si598 | 100 MHz | LVDS | 2.5V | ±25ppm |
| 598FBA000823DG | Skyworks Solutions Inc. | Si598 | 300 MHz | LVDS | 2.5V | ±25ppm |
| 598FBA000870DG | Skyworks Solutions Inc. | Si598 | 533.333333 MHz | LVDS | 2.5V | ±25ppm |
| 598RBA000136DG | Skyworks Solutions Inc. | Si598 | 160 MHz | LVPECL | 2.5V | ±25ppm |
| 598BBA001011DG | Skyworks Solutions Inc. | Si598 | 148.5 MHz | LVDS | 3.3V | ±25ppm |
| 598BBA002358DG | Skyworks Solutions Inc. | Si598 | 266.5 MHz | LVDS | 3.3V | ±25ppm |
| 598ACA000133DG | Skyworks Solutions Inc. | Si598 | 500 MHz | LVPECL | 3.3V | ±20ppm |
| 598ACA001715DG | Skyworks Solutions Inc. | Si598 | 26 MHz | LVPECL | 3.3V | ±20ppm |
| 598BCA000163DG | Skyworks Solutions Inc. | Si598 | 20 MHz | LVDS | 3.3V | ±20ppm |
| 598BCA000383DG | Skyworks Solutions Inc. | Si598 | 150 MHz | LVDS | 3.3V | ±20ppm |
| 598BCA001204DG | Skyworks Solutions Inc. | Si598 | 125 MHz | LVDS | 3.3V | ±20ppm |
| 598BCA001707DG | Skyworks Solutions Inc. | Si598 | 322 MHz | LVDS | 3.3V | ±20ppm |
| 598BCA001709DG | Skyworks Solutions Inc. | Si598 | 322 MHz | LVDS | 3.3V | ±20ppm |
| 598BCA001718DG | Skyworks Solutions Inc. | Si598 | 26 MHz | LVDS | 3.3V | ±20ppm |
| 598BCA001719DG | Skyworks Solutions Inc. | Si598 | 26 MHz | LVDS | 3.3V | ±20ppm |
| 598BCA001720DG | Skyworks Solutions Inc. | Si598 | 26 MHz | LVDS | 3.3V | ±20ppm |
| 598BCA001782DG | Skyworks Solutions Inc. | Si598 | 322.265625 MHz | LVDS | 3.3V | ±20ppm |
| 598BCA001783DG | Skyworks Solutions Inc. | Si598 | 322.265625 MHz | LVDS | 3.3V | ±20ppm |
| 598MCA001306DG | Skyworks Solutions Inc. | Si598 | 10 MHz | LVPECL | 3.3V | ±20ppm |
| 598ACA000105DGR | Skyworks Solutions Inc. | Si598 | 622.08 MHz | LVPECL | 3.3V | ±20ppm |
| 598ACA000112DGR | Skyworks Solutions Inc. | Si598 | 10 MHz | LVPECL | 3.3V | ±20ppm |
| 598ACA000115DGR | Skyworks Solutions Inc. | Si598 | 125 MHz | LVPECL | 3.3V | ±20ppm |
| 598ACA000118DGR | Skyworks Solutions Inc. | Si598 | 156.25 MHz | LVPECL | 3.3V | ±20ppm |
| 598ACA000121DGR | Skyworks Solutions Inc. | Si598 | 100 MHz | LVPECL | 3.3V | ±20ppm |
| 598ACA000568DGR | Skyworks Solutions Inc. | Si598 | 350 MHz | LVPECL | 3.3V | ±20ppm |
| 598ACA000642DGR | Skyworks Solutions Inc. | Si598 | 100 MHz | LVPECL | 3.3V | ±20ppm |
| 598ACA000653DGR | Skyworks Solutions Inc. | Si598 | 161.132812 MHz | LVPECL | 3.3V | ±20ppm |
| 598ACA000770DGR | Skyworks Solutions Inc. | Si598 | 100 MHz | LVPECL | 3.3V | ±20ppm |
| 598ACA000771DGR | Skyworks Solutions Inc. | Si598 | 156.25 MHz | LVPECL | 3.3V | ±20ppm |
| 598ACA000856DGR | Skyworks Solutions Inc. | Si598 | 100 MHz | LVPECL | 3.3V | ±20ppm |
| 598ACA000962DGR | Skyworks Solutions Inc. | Si598 | 322.26562 MHz | LVPECL | 3.3V | ±20ppm |
| 598ACA001134DGR | Skyworks Solutions Inc. | Si598 | 156.25 MHz | LVPECL | 3.3V | ±20ppm |
| 598ACA001204DGR | Skyworks Solutions Inc. | Si598 | 125 MHz | LVPECL | 3.3V | ±20ppm |
| 598ACA001376DGR | Skyworks Solutions Inc. | Si598 | 125 MHz | LVPECL | 3.3V | ±20ppm |
| 598ACA001377DGR | Skyworks Solutions Inc. | Si598 | 156.257813 MHz | LVPECL | 3.3V | ±20ppm |
| 598ACA001491DGR | Skyworks Solutions Inc. | Si598 | 500 MHz | LVPECL | 3.3V | ±20ppm |
| 598BCA000112DGR | Skyworks Solutions Inc. | Si598 | 10 MHz | LVDS | 3.3V | ±20ppm |
| 598BCA000303DGR | Skyworks Solutions Inc. | Si598 | 312.5 MHz | LVDS | 3.3V | ±20ppm |
| 598BCA000313DGR | Skyworks Solutions Inc. | Si598 | 300 MHz | LVDS | 3.3V | ±20ppm |
| 598BCA000360DGR | Skyworks Solutions Inc. | Si598 | 148.5 MHz | LVDS | 3.3V | ±20ppm |
| 598BCA000391DGR | Skyworks Solutions Inc. | Si598 | 280 MHz | LVDS | 3.3V | ±20ppm |
| 598BCA000770DGR | Skyworks Solutions Inc. | Si598 | 100 MHz | LVDS | 3.3V | ±20ppm |
| 598BCA000795DGR | Skyworks Solutions Inc. | Si598 | 100 MHz | LVDS | 3.3V | ±20ppm |
| 598BCA000824DGR | Skyworks Solutions Inc. | Si598 | 156.25 MHz | LVDS | 3.3V | ±20ppm |
| 598BCA000856DGR | Skyworks Solutions Inc. | Si598 | 100 MHz | LVDS | 3.3V | ±20ppm |
| 598BCA000896DGR | Skyworks Solutions Inc. | Si598 | 100 MHz | LVDS | 3.3V | ±20ppm |
| 598BCA001027DGR | Skyworks Solutions Inc. | Si598 | 100 MHz | LVDS | 3.3V | ±20ppm |
| 598BCA001134DGR | Skyworks Solutions Inc. | Si598 | 156.25 MHz | LVDS | 3.3V | ±20ppm |
| 598BCA001135DGR | Skyworks Solutions Inc. | Si598 | 156.25 MHz | LVDS | 3.3V | ±20ppm |
| 598BCA001136DGR | Skyworks Solutions Inc. | Si598 | 156.25 MHz | LVDS | 3.3V | ±20ppm |
| 598BCA001137DGR | Skyworks Solutions Inc. | Si598 | 156.25 MHz | LVDS | 3.3V | ±20ppm |
| 598BCA001138DGR | Skyworks Solutions Inc. | Si598 | 156.25 MHz | LVDS | 3.3V | ±20ppm |
| 598BCA001139DGR | Skyworks Solutions Inc. | Si598 | 156.25 MHz | LVDS | 3.3V | ±20ppm |
| 598BCA001140DGR | Skyworks Solutions Inc. | Si598 | 156.25 MHz | LVDS | 3.3V | ±20ppm |
| 598BCA001141DGR | Skyworks Solutions Inc. | Si598 | 156.25 MHz | LVDS | 3.3V | ±20ppm |
| 598BCA001142DGR | Skyworks Solutions Inc. | Si598 | 156.25 MHz | LVDS | 3.3V | ±20ppm |
| 598BCA001143DGR | Skyworks Solutions Inc. | Si598 | 156.25 MHz | LVDS | 3.3V | ±20ppm |
| 598BCA001144DGR | Skyworks Solutions Inc. | Si598 | 156.25 MHz | LVDS | 3.3V | ±20ppm |
| 598BCA001145DGR | Skyworks Solutions Inc. | Si598 | 156.25 MHz | LVDS | 3.3V | ±20ppm |
| 598BCA001146DGR | Skyworks Solutions Inc. | Si598 | 156.25 MHz | LVDS | 3.3V | ±20ppm |
| 598BCA001147DGR | Skyworks Solutions Inc. | Si598 | 156.25 MHz | LVDS | 3.3V | ±20ppm |
| 598BCA001148DGR | Skyworks Solutions Inc. | Si598 | 156.25 MHz | LVDS | 3.3V | ±20ppm |
| 598BCA001149DGR | Skyworks Solutions Inc. | Si598 | 156.25 MHz | LVDS | 3.3V | ±20ppm |
| 598BCA001150DGR | Skyworks Solutions Inc. | Si598 | 156.25 MHz | LVDS | 3.3V | ±20ppm |
| 598BCA001151DGR | Skyworks Solutions Inc. | Si598 | 156.25 MHz | LVDS | 3.3V | ±20ppm |
| 598BCA001152DGR | Skyworks Solutions Inc. | Si598 | 156.25 MHz | LVDS | 3.3V | ±20ppm |
| 598BCA001153DGR | Skyworks Solutions Inc. | Si598 | 156.25 MHz | LVDS | 3.3V | ±20ppm |
| 598BCA001154DGR | Skyworks Solutions Inc. | Si598 | 156.25 MHz | LVDS | 3.3V | ±20ppm |
| 598BCA001155DGR | Skyworks Solutions Inc. | Si598 | 156.25 MHz | LVDS | 3.3V | ±20ppm |
| 598BCA001156DGR | Skyworks Solutions Inc. | Si598 | 156.25 MHz | LVDS | 3.3V | ±20ppm |
| 598BCA001196DGR | Skyworks Solutions Inc. | Si598 | 174.7 MHz | LVDS | 3.3V | ±20ppm |
| 598BCA001197DGR | Skyworks Solutions Inc. | Si598 | 174.7 MHz | LVDS | 3.3V | ±20ppm |
.jpg)
.jpg)
SHENZHEN YIJIN ELECTRONICS CO;LTD
電話：0755-27876565
手機：18924600166
QQ：857950243
郵箱：yijindz@163.com
網站：http://www.sdyoujian.cn
地址：廣東省深圳市寶安區新安107國道旁
銷售代表
